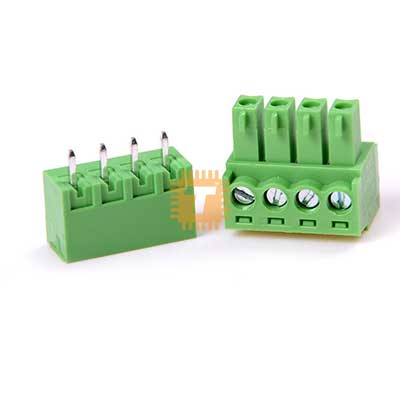

3.81mm Pitch 4-Pin 4-way Screw Terminal Block PCB Mount Pluggable Type (TB0012) Products
We are sorry but the product is out of stock, please check back after few days.
| Name | 3.81mm Pitch 4-Pin 4-way Screw Terminal Block PCB Mount Pluggable Type |
| Code | TB0012 |
| Price | Rs.70.00 |
| In Stock | No |
| Package | THT |
Product Details
Material
- Housing: PA66 UL94V-0
- Screw: M2
Electrical Specification
- Rated voltage: 300V
- Rated current: 8A
- Insulation resistance: 5000M?/1000V
- Contact resistance: 20m?
- Withstanding voltage: 2000V/1min
- Wire range: 26~16AWG
Mechanical & Operating Ambient
- Torque: 0.2Nm
- Strip length: 5~6mm
- Temp. range: -40°C ~ +105°C
- Max soldering temp: +250°C for 5sec
- Part. No.: 15EDCK-15EDCR-3.81
