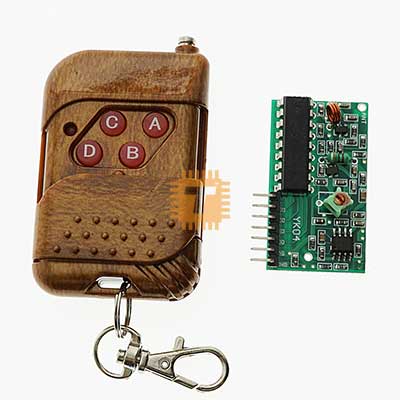

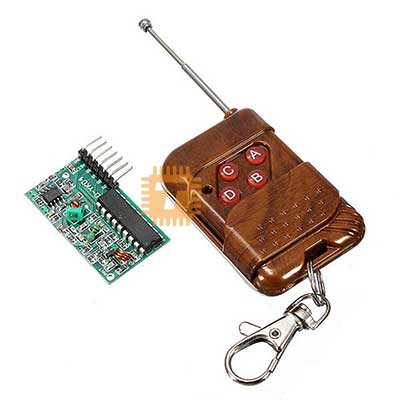

Remote control:

• Operating voltage: DC 12V(27A / 12V battery x 1)
• Operating current: 10mA at 12V
• Radiated power: 10mW at 12V
• Transmission distance: 50m - 100m (open field, the receiver sensitivity of -100dbm)
• Transmitting frequency: 315MHZ
• Modulation mode: ASK (Amplitude Modulation)
• Encoder types: fixed code

Decoding receiver board:

• Operating voltage: DC 5V
• Receiver sensitivity is -98dB
• Leg 7 bits: VT, D3, D2, D1, D0, +5V and GND
• VT is a valid signal high output pin upon receiving a valid signal, the pin output high, may also drive the relay
• Size: 6.6 x 22 x 41mm
