General Specification

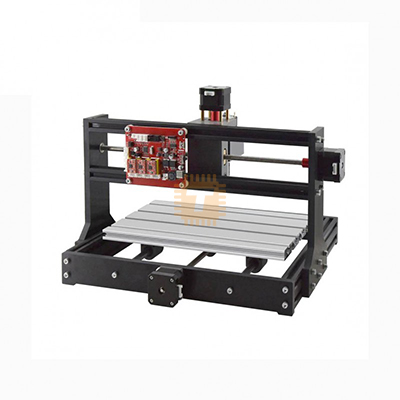

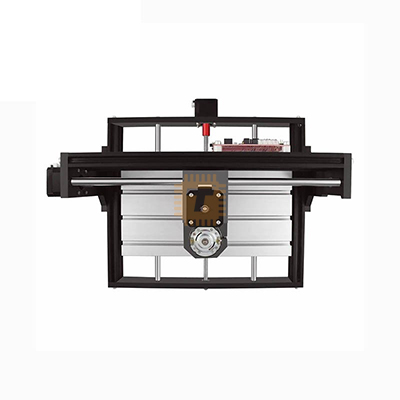

• Model: CNC 3018 Pro (Without Laser Module)
• Frame Material: Aluminum Alloy, Bakelite
• Color: Black
• Table Area: Approx. 400 * 330 * 240mm
• Working Area: Approx. 300 * 180 * 40mm
• Product Weight: 4.5kg
• Control Software for Spindle: Grbl Control
• Control Software for Laser: Litefire
• System Requirements: Windows XP, Win7, Win8, Win10.
• Adapter Input Voltage: AC 110-240V 50/60Hz
• Adapter Output Voltage: DC 24V 4A

Features:

• 1. Aluminum Profile Stable Construction
• 2. 3 Axis Movable, Adjustable Speed Spindle Motor
• 3. Contains Quickstart Guide of GRBL Software
• 4. 300 x 180 x 40mm Working Area, Meet Most Amateur DIY Needs
• 5. Engrave Wood, Plastic, Acrylic, PCB, or Similar Material
• Can Not Engrave Metal, Steel, Aluminum.

Technical Parameters:

• Working Voltage DC 24V
• Interface USB
• Stepper Motor 42 Stepper Motor, Voltage: 12V, Phase Current 1.3A, Torque 0.25N.m
• Spindle Motor 775 Spindle Motor (12-36V) 24V: 10000r/min,36V: 12000r/min

Features:

• - Assembly requires a certain mechanical skill. All assembly components are included.
• - Engraving Materials: The machine can carve wood, plastic, acrylic, PCB, or the like materials.
• - Can Not Engrave Hard metal (such as brass, steel, iron, etc.), jade and other very hard texture items.
