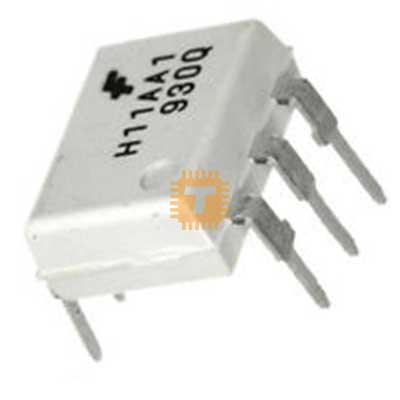

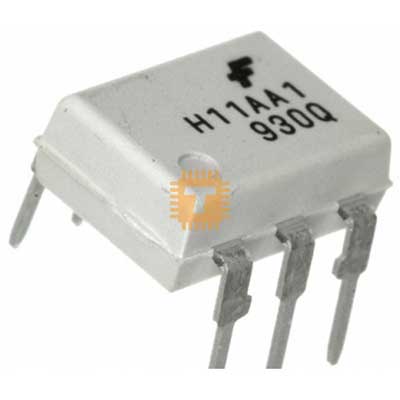

IC0054 - H11AA1 Optocoupler

H11AA1 Optocoupler (IC0054) Products

We are sorry but the product is out of stock, please check back after few days.

Name	H11AA1 Optocoupler
Code	IC0054
Price	Rs.80.00
In Stock	No
Package	THT

Product Details

The H11AA1 is a bi-directional input optically coupled isolator consisting of two inverse parallel gallium arsenide infrared LEDs coupled to a silicon NPN phototransistor in a 6 pin DIP package. The H11AA1 has a minimum CTR of 20 %, a CTR symmetry of 1:3 and is designed for applications requiring detection or monitoring of AC signals.

Features:

AC or polarity insensitive input

Built-in reverse polarity input protection

I/O compatible with integrated circuits

Industry standard DIP package

Isolation test voltage: 5300 VRMS

Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC

Package: DIP-6

Link to datasheet: https://www.vishay.com/docs/83608/h11aa1.pdf
