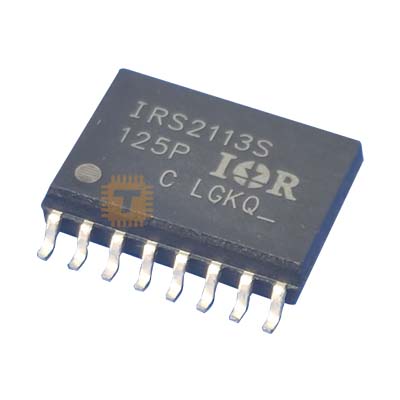

The IRS2110 and IRS2113 are high-voltage, high-speed power MOSFET and IGBT drivers with independent high-side and low-side referenced output channels.Proprietary HVIC and latch-immune CMOS technologies enable ruggedized monolithic construction.Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3 V.The output drivers feature a high-pulse-current buffer stage designed for minimum driver cross-conduction.Propagation delays are matched to simplify use in high-frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration, which operates up to 500 or 600 V.

Features:

• Floating channel designed for bootstrap operation
• Fully operational to +500 V or +600 V
• Tolerant to negative transient voltage, dV/dt immune
• Gate drive supply range from 10 V to 20 V
• Undervoltage lockout for both channels
• 3.3 V logic compatible
• Separate logic supply range from 3.3 V to 20 V
• Logic and power ground ± 5V offset
• CMOS Schmitt-triggered inputs with pull-down
• Cycle by cycle edge-triggered shutdown logic
• Matched propagation delay for both channels
• Outputs in phase with inputs

Datasheet: https://www.infineon.com/dgdl/Infineon-IRS2110-DataSheet-v01_00-EN.pdf?fileId=5546d462533600a40153567660ff27b0
