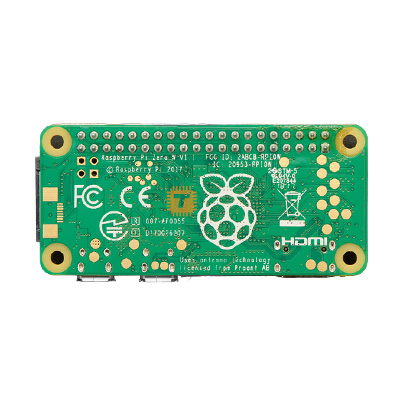

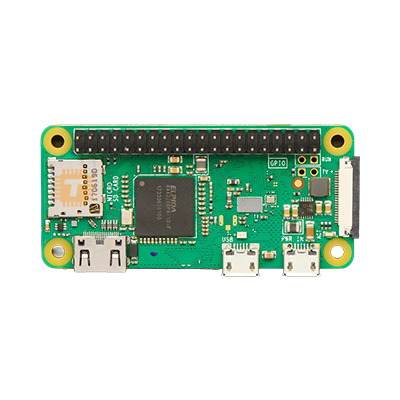

The Raspberry Pi Zero WH is an ultra-compact, low-cost single-board computer (SBC) designed for space-constrained IoT (Internet of Things), embedded, and prototyping applications. This specific variant builds on the popular Pi Zero W by including a pre-soldered 40-pin GPIO header, eliminating the need for manual soldering and making it instantly compatible with breadboards, jumper wires, and standard Raspberry Pi HATs.

Specifications

• CPU: Broadcom BCM2835 single-core ARMv6 processor running at 1GHz.
• Memory: 512MB LPDDR2 SDRAM.
• Wireless Connectivity:
  • 2.4GHz 802.11 b/g/n wireless LAN (Wi-Fi).
  • Bluetooth 4.1 & Bluetooth Low Energy (BLE).
• GPIO: Pre-soldered 40-pin color-coded or standard header (fully compatible with Raspberry Pi 3/4/5 pinouts).
• Video & Audio: Mini-HDMI port (supports 1080p60 video output).
• USB Ports: 1x Micro-USB data port (OTG), 1x Micro-USB power port.
• Camera Interface: CSI camera connector (requires a mini-CSI camera adapter cable).
• Storage: MicroSD card slot for operating system and data storage.
• Power Input: 5V DC via Micro-USB (Recommended 2.5A power supply).

Key Features

• Pre-Soldered Header: Ready out of the box for rapid hardware prototyping, student classrooms, and developers who want a plug-and-play experience with sensors and modules.
• Full Linux OS Environment: Despite its tiny footprint, it runs standard Raspberry Pi OS (formerly Raspbian) headless or with a full desktop GUI.
• Embedded Wireless: The onboard Cypress chip provides reliable wireless internet connectivity and BLE integration without requiring external dongles.
• USB On-The-Go (OTG): The data port allows the Pi Zero WH to act as a USB gadget (such as a USB ethernet adapter, keyboard, or mass storage device) when connected directly to a PC.

Interface and Connection Guide

• Mini-HDMI: Requires a Mini-HDMI to standard HDMI adapter or cable to connect to standard monitors or TVs.
• Micro-USB (Data/OTG): Used to connect USB hubs, keyboards, mice, or to bridge to a PC.
• Micro-USB (PWR IN): Dedicated strictly for power input. It bypasses data lines to deliver steady current to the board.
• CSI Camera Port: A 0.5mm pitch FPC connector used for connecting the official Raspberry Pi Camera module.

Common Applications

• IoT Smart Gateways: Collecting data from local sensors via GPIO and uploading it to cloud databases over Wi-Fi.
• Headless Micro-Servers: Setting up lightweight network servers such as Pi-hole (ad blocker), print servers, or local VPN nodes.
• Wireless Security Cameras: Combining the small footprint with a camera module for low-profile streaming or time-lapse captures.
• Embedded Electronics & Robotics: Serving as the central brain for smart vehicles, automated dispensers, and environmental monitoring systems.

Usage Tips

• Power Delivery: Avoid powering the board using a standard computer USB port if you are using Wi-Fi heavily or connecting external peripherals, as this can cause brownout instabilities. Use a dedicated 5V 2.5A adapter.
• OS Compatibility: Because the BCM2835 is an older ARMv6 architecture processor, ensure you download the 32-bit (ARMv6/Legacy) version of Raspberry Pi OS. Newer 64-bit builds will not boot on this hardware.
• Adapter Kit Recommended: To work comfortably, it is best to stock up on a Mini-HDMI to HDMI adapter and a Micro-USB OTG cable to interface with standard cables and USB devices.
