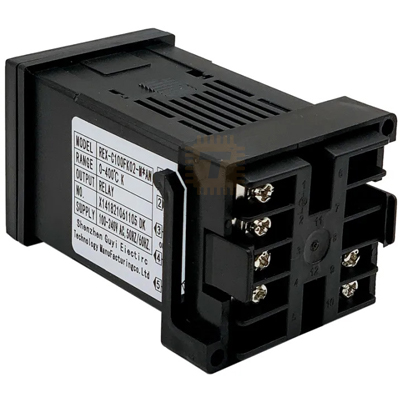

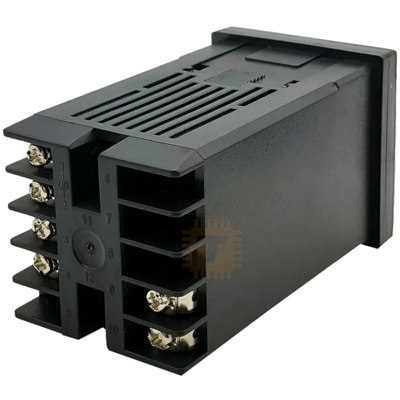

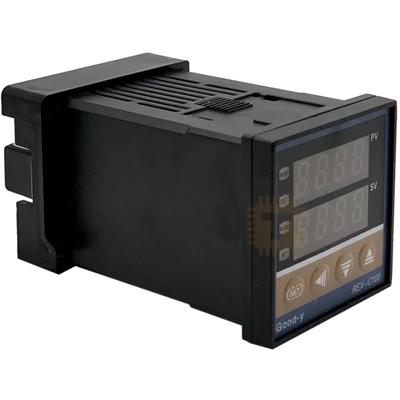

The REX‑C100FK07‑M*AN is a compact PID temperature controller, designed for robust and precise thermal control in industrial environments. Notably, this variant features a mechanical relay (ON/OFF) output and supports high-temperature operation, making it ideal for demanding applications.

Features :

• Dual digital display for real-time process and setpoint monitoring
• PID control with auto-tuning for stable and responsive temperature regulation
• Compact 48×48 mm DIN form factor for easy panel mounting
• Relay output suitable for resistive heating elements
• Configurable alarm for over-temperature protection
• Simple setup and operation with tactile front-panel buttons
• Ideal for ovens, incubators, heaters, and other thermal systems

Specifications :

• Temperature Range: ≈ 0 to 1300 °C
• Display: Dual 7‑segment LEDs (PV green, SV orange)
• Input Types: Thermocouples (K, S, E, J, N, ...), Voltage: 0‑5 V, Current: 4‑20 mA
• Control Modes: ON/OFF, PID (including P, PI, PD), auto-tuning, reverse action
• OutputRelay (250 VAC, 3 A resistive)
• Accuracy / Res.: ±0.5% FS, 14-bit resolution, 0.5 s sampling
• Power: 100‑240 VAC, ~17 VA
• Mounting / Size: 48×48×100 mm, cutout 45×45 mm
• Environment: 0–50 °C, 30–85% RH, no condensation
• Certifications: RoHS, CE, UL
• Alarms/Extras: Deviation alarm, memory backup, EMI protection

Applications :

• Kilns, ovens, and furnaces in ceramics, metallurgy, and heat treatment
• Plastic molding and extrusion systems
• Heavy-duty heating environments in chemical and food processing
• General industrial machinery requiring reliable thermal regulation at elevated temperatures
