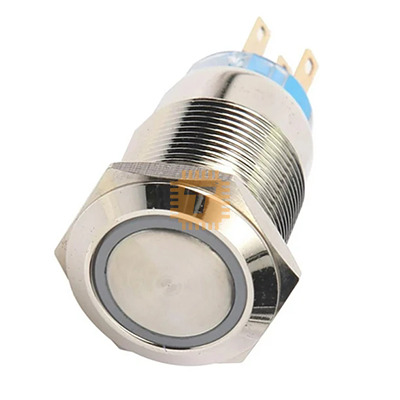

Specifications:

• Made of high quality metal & IP65 waterproof protection and can be used in wet or dusty environment.
• Optional Colour: Iris Blue
• LED voltage: 24V DC
• Hole size required: Approx. 0.63" / 16mm
• Latching switch: Push it, ON; Push it again, OFF
• Touch Configuration: 1NO 1NC
• Switch rating: 5A / 250VAC
• Working temperature: -20 ~ +55degree Celsius
• Mechanical life: 1,000,000 cycles
• Electrical life: 200,000 cycles
• Panel thickness: Approx. 1-10mm
• Protection level: IP65, IK10
• Operation type: Latch
• LED rating: 24VDC 15mA
• LED pattern: Ring indicator
• Touch material: Silver alloy
• Button material: Stainless Steel
