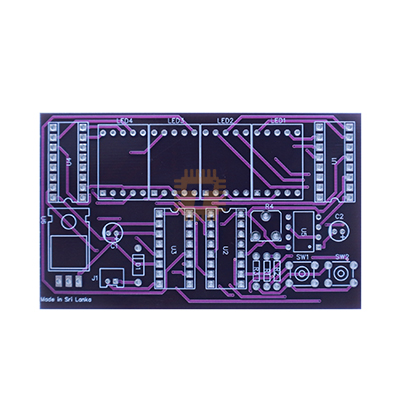

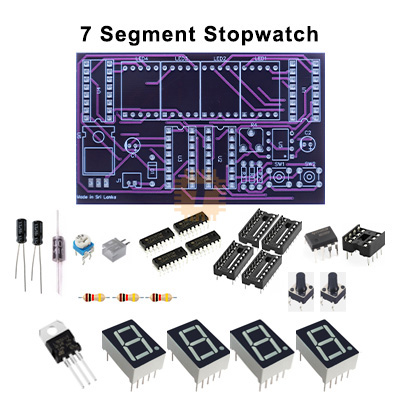

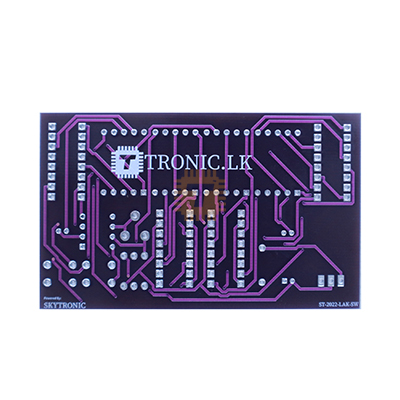

The IC CD4026 used in this project has both a counter and 7-segment decoder in one package. This IC has a full static counter which is ideal for low power decade counting seven segment displays, frequency division seven segment decimal displays, clocks, watches, timers, counter/display driver for meter applications. One push button is used to stop /start the stopwatch and one push button is used to reset the stopwatch.

This electronic learning kit is designed for youngsters and hobbyists to learn fundamental concepts and practice skills such as component identification, soldering, and testing. Before diving into programmable electronics such as Arduinos, this book is highly recommended for anybody interested in electronics.

You'll need a soldering iron, a stand for the iron, lead, and a 7V to 12V power supply. The presence of an adult is required at all times.

Please contact Skytronic directly through [email protected] for any technical assistance.

මෙම ඉලෙක්ට්රොනික ඉගෙනුම් කට්ටලය පාසල් දරුවන් සඳහා මූලික සංකල්ප ඉගෙන ගැනීමට සහ සංරචක හඳුනා ගැනීම, පෑස්සුම් කිරීම සහ පරීක්ෂා කිරීම වැනි කුසලතා පුහුණු කිරීම සඳහා නිර්මාණය කර ඇත. Arduinos වැනි ක්රමලේඛනය කළ හැකි ඉලෙක්ට්රොනික උපකරණ වෙත කිමිදීමට පෙර, ඉලෙක්ට්රොනික් පිළිබඳ උනන්දුවක් දක්වන ඕනෑම අයෙකුට මෙම පොත බෙහෙවින් නිර්දේශ කෙරේ.

ඔබට පෑස්සුම් උපකරණයක්, පෑස්සුම් උපකරණය සඳහා රඳවනයක්, ඊයම් සහ 7V සිට 12V දක්වා බල සැපයුමක් අවශ්ය වනු ඇත. වැඩිහිටියෙකුගේ මග පෙන්වීම සෑම විටම අවශ්ය වේ.

ඕනෑම තාක්ෂණික සහායක් සඳහා කරුණාකර Skytronic සෘජුවම [email protected] හරහා සම්බන්ධ වන්න.

இந்த மின்னணு கற்றல் கருவி இளைஞர்கள் மற்றும் பொழுதுபோக்கிற்காக வடிவமைக்கப்பட்டுள்ளது, இது அடிப்படைக் கருத்துகள் மற்றும் பயிற்சித் திறன்களான கூறு அடையாளம், சாலிடரிங் மற்றும் சோதனை போன்றவை. Arduinos போன்ற நிரல்படுத்தக்கூடிய மின்னணுவியலில் மூழ்குவதற்கு முன், மின்னணுவியலில் ஆர்வமுள்ள எவருக்கும் இந்தப் புத்தகம் மிகவும் பரிந்துரைக்கப்படுகிறது.

உங்களுக்கு ஒரு சாலிடரிங் இரும்பு, இரும்புக்கான நிலைப்பாடு, ஒரு ஈயம் மற்றும் 7V to 12V மின்சாரம் தேவை. ஒரு வயது வந்தவரின் இருப்பு எல்லா நேரங்களிலும் தேவைப்படுகிறது.

ஏதேனும் தொழில்நுட்ப உதவிக்கு Skytronic ஐ [email protected] மூலம் நேரடியாக தொடர்பு கொள்ளவும்.

Assembly Document: EELKSW.pdf
