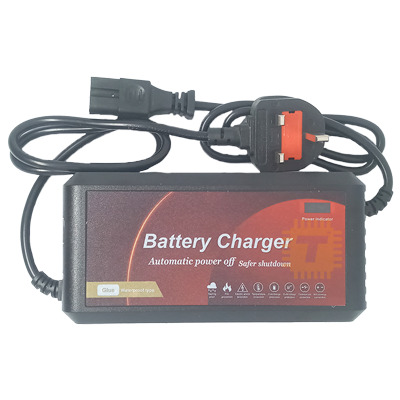

BA0219 - 72V 20A Battery Charger eBike (Glue WP Type)

72V 20A Battery Charger eBike (Glue WP Type) (BA0219) Products

We are sorry but the product is out of stock, please check back after few days.

Name	72V 20A Battery Charger eBike (Glue WP Type)
Code	BA0219
Price	Rs.4,600.00
In Stock	No
Package	BATTERY

Product Details

Specifications:

Input	100-240VAC,50/60HZ	Input Plug	EU US UK AUS JP Korea Italy Brazil India South Africa
Output	4.2V/ cell 14S 72V3A	Charge mode	CC--CV Mode
Led Indicator	Red--charging; Green--full charge	Protection	Over-current, Over-voltage, Short-circuit, Polarity reverse
Suitable Battery	Lithium Ion battery pack	Efficiency	>82%
Output connector	customized(as below)	MTBF	50000hrs
Hi-Pot	3000VAC/60S	Storage Temperature	-40ºC~ +80ºC
Operating Temperature	-20ºC~ +50ºC	Lead time	sample: 3-5 days Order: 12-15 days
Certification	CE FCC GS CB PSE KC SAA

Features:

Short-circuit protection, charger o/p current automatically when short-circuit
Overload protection: Charger o/p current limited automatically when overload
Reverse polarity protection: It will shut down when the wire is connected, charge DC fuse or remove the fault
3-stage charging mode: CC(constant current), CV(constant voltage) and float stage
Reliable, elegant, Small size, light, with cooling fan
Charging state: TWO LED display
Multiple plugs can be selected

Charging operation

Step 1, Examine and make sure rated voltage of battery is conforming to output voltage of charger
Step 2, Connect correctly the charger and the battery
Step 3, Examine and make sure mains supply voltage is conforming to input voltage of the charger
Step 4, Connect mains supply and the battery, watch to see if the indicator is on and the cooling fan is working when charging
Step 5, if the charger refuse to work, turn off mains supply immediately and check all the connecting cables between mains supply, the battery and the charger
