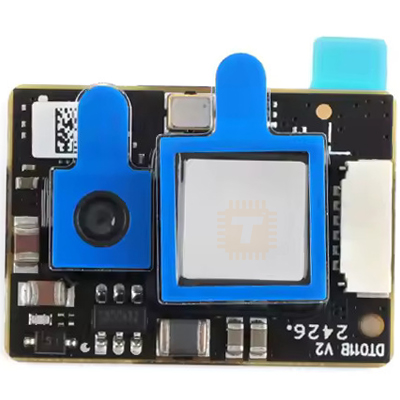

The DTS6012M LiDAR Range Finder Module is a high-performance single-point Direct Time-of-Flight (DToF) laser distance sensor designed for industrial, robotics, and automation applications. With a maximum detection range of 20 meters and centimeter-level accuracy, this compact sensor provides stable and reliable distance measurement in real time.

Its advanced DToF technology ensures fast response times, strong ambient light resistance, and low power consumption, making it suitable for both indoor and outdoor environments. The included cable allows for quick integration into various projects, from robotic navigation to industrial safety systems.

Key Features:

• 20m long-range measurement with stable performance
• Centimeter-level accuracy for precise distance detection
• DToF laser technology for high-speed, reliable measurements
• Single-point LiDAR for focused detection and obstacle avoidance
• Excellent ambient light resistance – works indoors & outdoors
• Compact module design with easy installation (cable included)
• Ideal for robots, drones, AGVs, IoT devices, and industrial automation

Technical Specifications:

• Model: DTS6012M
• Measurement Range: 0.1m ~ 20m
• Accuracy: ±2cm (typical conditions)
• Resolution: 1 cm
• Measurement Frequency: Up to 100 Hz
• Light Source: Infrared Laser (Class 1 Eye-Safe)
• Field of View (FOV): ~3°
• Communication Interface: UART / I²C (depending on version)
• Input Voltage: 3.3V DC
• Power Consumption: < 1W>
• Operating Temperature: -10°C to +60°C
• Ambient Light Resistance: Up to 70k lux
• Cable Included: Yes

Applications:

• Autonomous mobile robots (AMRs) & drones
• Obstacle detection & collision avoidance
• Automated Guided Vehicles (AGVs)
• Industrial automation and warehouse systems
• Smart IoT devices
• Distance monitoring & safety sensors

Tutorial: DTS6012M_UART
