Summary

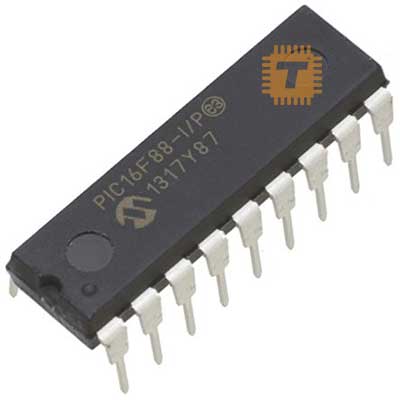

This powerful (200 nanosecond instruction execution) yet easy–to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into an 18-pin package and is upwards compatible with the PIC16C7x, PIC16C62xA, PIC16C5X and PIC12CXXX devices. The PIC16F88 features 8 MHz internal oscillator, 256 bytes of EEPROM data memory, a capture/compare/PWM, an Addressable USART, a synchronous serial port that can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus, 7 channels of 10-bit Analog-to-Digital (A/D) converter and 2 Comparators that make it ideal for advantage analog / integrated level applications in automotive, industrial, appliances and consumer applications.

Parametrics

• Program Memory Type: Flash
• Program Memory Size (KB): 7
• CPU Speed (MIPS/DMIPS): 5
• SRAM (B): 368
• Data EEPROM/HEF (bytes): 256
• Digital Communication Peripherals: 1-UART, 1-SPI, 1-I2C1-SSP(SPI/I2C)
• Capture/Compare/PWM Peripherals: 1 Input Capture, 1 CCP,
• Timers: 2 x 8-bit, 1 x 16-bit
• ADC Input: 7 ch, 10-bit
• Number of Comparators: 2
• Temperature Range (°C): -40 to 125
• Operating Voltage Range (V): 2 to 5.5
• Pin Count: 18

Supplier link: https://www.microchip.com/wwwproducts/en/PIC16F88
