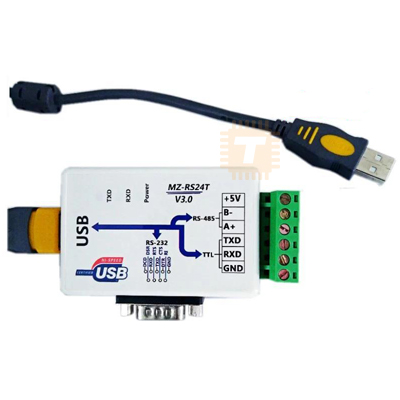

The MZ-RS24T USB to RS232/RS485/TTL Converter is a versatile industrial-grade module designed to facilitate communication between USB interfaces and various serial protocols, including RS232, RS485, and TTL. This converter is particularly useful for applications requiring reliable data transmission across different communication standards.

Features :

• Multi-Protocol Support: Enables seamless communication between USB, RS232, RS485, and TTL interfaces, making it ideal for diverse industrial applications.
• FTDI FT232RL Chipset: Utilizes the FTDI FT232RL chip, known for its stable and reliable performance in USB-to-serial conversions.
• Isolation Protection: Incorporates built-in power supply isolation, digital isolation, and protection circuits like TVS diodes to safeguard against voltage spikes and ensure stable operation.
• Voltage Level Switching: Features a voltage level switch that allows users to select between 3.3V and 5V TTL levels, accommodating a wide range of devices.
• Compact Design: Housed in a durable enclosure, the converter is designed for easy integration into various systems.

Specifications :

• Data Rate: Supports baud rates ranging from 300 bps to 921,600 bps, ensuring compatibility with various devices.
• Operating Voltage: Operates at 5V, with the option to select TTL levels at 3.3V or 5V.
• Connectors:
  • USB: USB-B connector for host connection.
  • RS232: DB9 male connector for serial communication.
  • RS485: Screw terminal block for differential signaling.
  • TTL: Screw terminal block for UART connections.

Applications :

• Industrial Automation: Integrates legacy equipment with modern USB-enabled systems.
• Embedded Systems: Facilitates communication between microcontrollers and other serial devices.
• Data Acquisition: Collects data from various sensors and instruments using different communication protocols.
• Device Programming: Programs devices that require specific serial communication standards.
