RB0314 - Servo Motor Metal Wheel 25kg TD-8125MG

Servo Motor Metal Wheel 25kg TD-8125MG (RB0314) Products

Name	Servo Motor Metal Wheel 25kg TD-8125MG
Code	RB0314
Price	Rs.3,060.00
In Stock	Yes
Package	ROBOT

Product Details

The TD-8125MG is a high-torque, waterproof digital servo motor designed for demanding applications such as robotics, RC vehicles, and automation systems. Manufactured by TianKongRC, this servo offers a blend of power, durability, and precision.

Features :

High Torque Output: Delivers up to 26.8 kgcm of torque, suitable for heavy-duty applications.

Fast Response Time: Achieves 60° rotation in just 0.14 seconds at 7.2V, ensuring quick actuation.

Durable Construction: Metal gears enhance strength and longevity, making it ideal for high-stress environments.

Waterproof Design: Splash-proof housing allows for use in various environmental conditions.

Wide Voltage Range: Operates efficiently within a 4.8V to 7.2V range, offering flexibility in power supply.

Specifications :

Torque:

23.5 kgcm at 4.8V
26.8 kgcm at 7.2V

Speed:

0.18 sec/60° at 4.8V
0.14 sec/60° at 7.2V

Operating Voltage: 4.8V to 7.2V DC

Operating Temperature: -25°C to 70°C

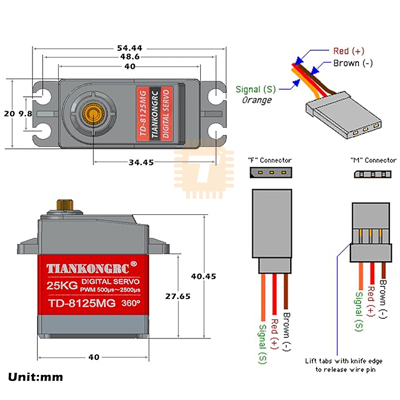

Dimensions: 40 x 20 x 40.5 mm

Weight: Approximately 56–62 grams

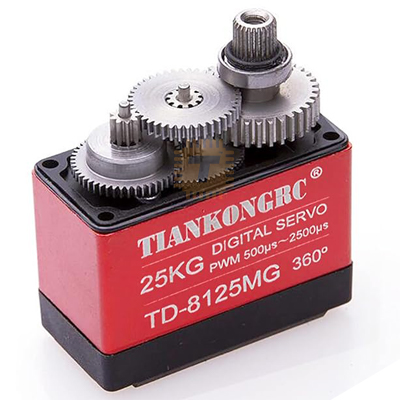

Gear Material: Metal

Water Resistance: Splash-proof

Shaft Type: Spline 25T

Control Interface: PWM (Pulse Width Modulation)

Pulse Width Range: 500–2500 µs

Neutral Position: 1500 µs

Dead Band Width: 5 µs

Power Requirements: This servo can draw significant current, especially under load (up to approximately 2500mA at 6V at standstill). Ensure your power supply can accommodate this demand.

Control Compatibility: Compatible with standard PWM controllers; however, adjustments to pulse width may be necessary for full 180° rotation.

Not Suitable for Arduino Power: Due to high current draw, it's not recommended to power this servo directly from an Arduino board.

Applications :

The TD-8125MG is a versatile and robust servo motor, well-suited for applications requiring high torque and durability. Its waterproof design and metal gear construction make it a reliable choice for both indoor and outdoor projects.
