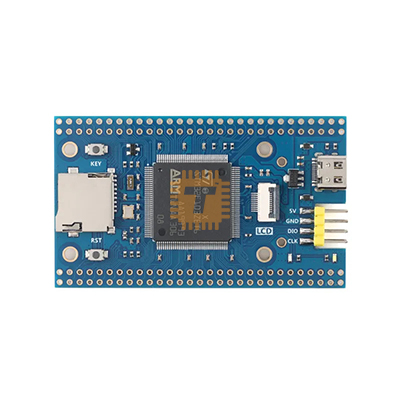

The STM32F407ZET6 is a part of STM32F4 series 32 Bit Microcontroller. It has an storage temperature ranging from - 65 °C to + 150 °C and it is available in LQFP-144 Packaging. The STM32F407 family is based on the high-performance ARM® Cortex™ M4F 32-bit RISC core operating at a frequency of up to 168MHz. The Cortex M4F core features a Floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. This simple minimum system board that can be used to make your development work more easier, it’s cheap but more powerful.

Features:

• Core: STM32F407ZET6 ARM® 32-bit Cortex®-M4 CPU with FPU
• Flash Memory: Up to 1 MB
• SRAM Memory: Up to 192 + 4 Kbytes ( including 64-Kbyte of CCM RAM data )
• Frequency: Up to 168 MHZ
• Operating Voltage: 1.8V - 3.6V
• RTC: Sub-second precision, Calendar hardware3
• Interface: I2C, USART, UART, SPI, SDIO,SWD
