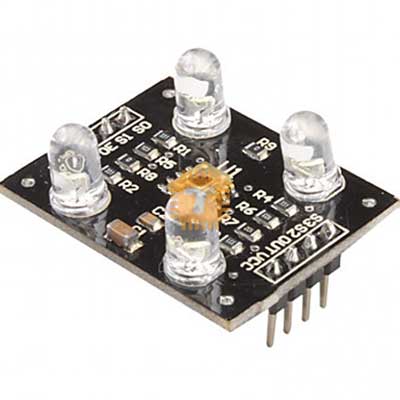

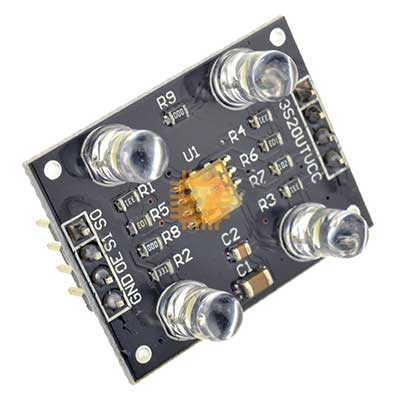

The TCS230 module uses an array of filtered photodiodes and a frequency output converter to detect color intensity. It converts light into square wave signals proportional to red, green, blue, or clear light levels. Ideal for color sorting, test strip reading, and ambient light detection in Arduino-based systems.

Specifications

• Sensor Chip: TCS230 (programmable color light-to-frequency converter)
• Interface: Digital TTL output (frequency-based)
• Operating Voltage: 3 V to 5 V DC
• Output Frequency Range: 0 Hz to ~500 kHz (scalable)
• Photodiode Array:
  • 16 red-filtered
  • 16 green-filtered
  • 16 blue-filtered
  • 16 clear (no filter)
• Control Pins:
  • S0, S1: Output frequency scaling
  • S2, S3: Photodiode filter selection
  • OE: Output enable (active low)
• Illumination: 4 onboard white LEDs
• Best Detection Distance: ~10 mm

Features

• Converts light intensity into frequency output for digital color detection
• Selectable photodiode filters via control pins (Red, Green, Blue, Clear)
• Scalable output frequency for compatibility with various microcontrollers
• Onboard white LEDs for consistent object illumination
• Ideal for color sorting, test strip analysis, and ambient light sensing
• Common use cases:
  • Arduino-based color recognition projects
  • RGB LED color replication
  • Smart packaging and sorting systems
  • DIY colorimeters and educational kits
