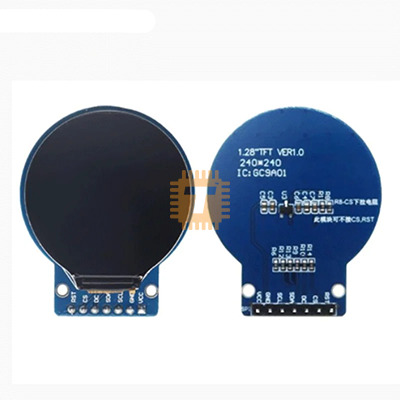

This is a RGB 240X240 dot-matrix TFT LCD module with GC9A01. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backlight unit. It uses a full-colour LCD screen with a circular appearance and is suitable for making watches, clocks, or measuring instruments. It can also be used with ESP32, Raspberry Pi or Arduino.

Specifications:

• Size: 1.28 inch
• Material: HD TFT LCD
• Resolution: 240 x 240 RGB
• Driver chip: GC9A01
• Communication Interface: 4 Line SPI
• Display colour: Full colour
• Display area: 32.4m㎡
• Panel size: 35.6mm x 38.1m x 1.5mm
• Pixel pitch: 0.135 x 0.135
• Number of pins: 13 Pins (7mm Pitch Welded FPC）
• Viewing direction: All View
• Operating Voltage: 3.3V
• Working current: 20mA
• Backlight type: 2 White LED Parallel
• Operating temperature: -20~70℃

Documentation:

• Datasheet
