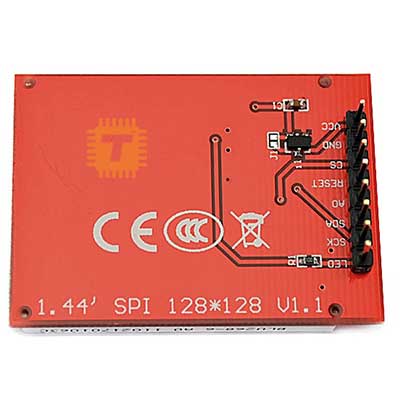

This 1.44-inch TFT LCD is a compact and versatile display module perfect for adding a color interface to small-scale electronic projects. Featuring a 128x128 pixel resolution and driven by a reliable display controller IC, it delivers sharp and clear graphics. The module is designed with built-in level shifters and a voltage regulator, making it directly compatible with both 3.3V and 5V microcontrollers. With its integrated SD card slot and reserved space for SPI FLASH, it offers significant expansion capabilities for storing images and custom fonts in a tiny footprint.

Specifications

• Module Size: 1.44 inch
• Resolution: 128 x 128 Pixels
• Controller Chip: Arduino Compatible (Such as ILI9341, ST7789, SPFD5408, etc.)
• Interface: SPI Serial
• Operating Voltage: 3.3V to 5V (Integrated voltage regulator)
• IO Logic Level: 3.3V / 5V Compatible (Onboard level shifting)
• Expansion:
  • Integrated SD card slot
  • Reserved SPI FLASH font circuit pads

Features

• High Compatibility: Supports multiple MCU types in-line without complex external wiring.
• Flexible Logic Support: Onboard level shifting allows for safe and direct connection to 5V boards (like Arduino Uno) and 3.3V boards (like ESP32).
• Compact Design: Ideal for wearable devices, handheld instruments, and projects where space is limited.
• Expandable Storage: The SD card circuit and reserved FLASH pads provide easy options for memory-intensive applications.
• Common Applications:
  • Miniature gaming consoles
  • Portable sensor data displays
  • Real-time clock (RTC) visualizers
  • Electronic name tags and miniature photo frames

NOTE: Even though the item name may contains a particular display driver IC, it could contain a different but compatible display driver IC. The firmware should first detect the controller IC and then initialise accordingly.
