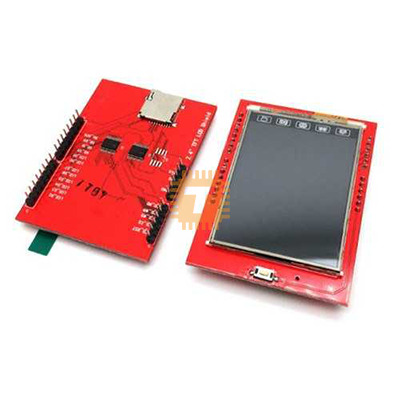

This 2.4-inch TFT LCD shield adds vivid graphics and touch interaction to Arduino projects. Featuring a bright 240x320 pixel display, a 4-wire resistive touchscreen, and an onboard microSD slot, it is ideal for GUI dashboards, sensor visualization, and interactive control panels. The shield is designed to plug directly into an Arduino Uno or Mega, providing a seamless hardware integration without the need for complex wiring.

Specifications

• Display Size: 2.4 inches diagonal TFT LCD
• Resolution: 240 x 320 pixels
• Color Depth: 18-bit (262,000 colors)
• Backlight: 4 x white LEDs
• Touchscreen: 4-wire resistive (X+, X-, Y+, Y-)
• Controller IC: Arduino Compatible (Such as ILI9341, ST7789, SPFD5408, etc.)
• Interface:
  • 8-bit parallel data bus
  • 4 control lines (RS, WR, CS, RST)
• I/O Usage:
  • Digital pins 5-13
  • Analog pins A0-A3
  • Pin 12 available if microSD not used
  • Pins 2, 3, A4, A5 remain free
• External Interfaces: microSD card slot (SPI)
• Operating Voltage: 5V (compatible with 3.3V logic via onboard regulator)
• Onboard Regulator: 3.3V LDO (300mA max)
• Dimensions: ~72mm x 52mm x 12mm
• Mounting: Arduino UNO/Mega shield form factor

Features

• Full-Colour Graphical Display: Provides individual pixel control for high-quality images and complex interface designs.
• Interactive Touch Input: Integrated resistive touch layer allows for the creation of buttons, sliders, and drawing applications.
• Expandable Storage: The built-in microSD slot enables the loading of large bitmap images, font files, or data logs.
• Plug-and-Play Shield: Specifically designed to fit the Arduino Uno and Mega footprint for a secure and direct connection.
• Common Applications:
  • Weather stations and environmental sensor panels
  • Touch-controlled home automation interfaces
  • Handheld data loggers with SD storage
  • STEM educational kits and interactive displays

NOTE: Even though the item name may contains a particular display driver IC, it could contain a different but compatible display driver IC. The firmware should first detect the controller IC and then initialise accordingly.

Software Libraries

• Adafruit Touch Screen Library
• Adafruit TFTLCD Library
• Adafruit GFX Library
