MD0240 - 3.5 inch 480x320 SPI TFT LCD Display Touch Screen Shield Module 3.3-5V for Arduino

3.5 inch 480x320 SPI TFT LCD Display Touch Screen Shield Module 3.3-5V for Arduino (MD0240) Products

Name	3.5 inch 480x320 SPI TFT LCD Display Touch Screen Shield Module 3.3-5V for Arduino
Code	MD0240
Price	Rs.2,650.00
In Stock	Yes
Package	MODULE

Product Details

This 3.5-inch touch screen module features a high-resolution display of 480x320 pixels, providing a larger and sharper viewing area for detailed graphics and complex user interfaces. It is equipped with a sensitive resistive touch panel, allowing for precise user interaction. The board includes an integrated microSD (TF) card socket on the back, enabling convenient storage and retrieval of images, icons, and data logs. Designed for versatility, the module supports both 3.3V and 5V power and logic levels, making it compatible with a wide range of microcontrollers including Arduino, ESP32, and STM32. <button></button>

Specifications

Resolution: 480 x 320 Pixels
Controller Options: Arduino Compatible (Such as ILI9341, ST7789, SPFD5408, etc.)
Interface: SPI Serial
Touch Screen Type: Resistive touch
Operating Voltage: 3.3V / 5V

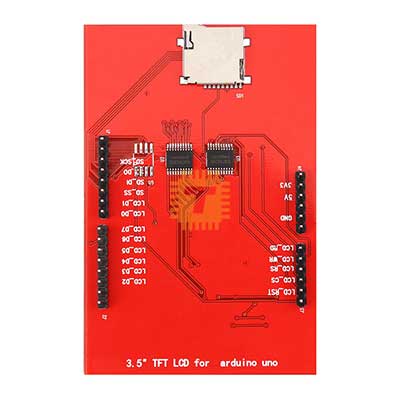

External Storage: MicroSD (TF) card socket integrated on-board <button></button>
Weight: Approximately 50g
Logic Level Compatibility: 3.3V to 5V

Features

High-Resolution Display: Offers 480x320 pixels for crisp text and detailed graphical rendering. <button></button>
Sensitive Touch Panel: Provides a smooth and responsive interface for menu navigation and interactive controls.
Integrated SD Socket: Simplifies projects that require loading bitmap images or logging large amounts of sensor data.
Wide Compatibility: Onboard voltage regulation and level shifting ensure stable operation with both 3.3V and 5V systems.
Common Applications:
- Advanced GUI dashboards for home automation
- Handheld diagnostic and measurement instruments
- Digital photo frames and image viewers
- Interactive control panels for industrial or DIY projects

NOTE: Even though the item name may contains a particular display driver IC, it could contain a different but compatible display driver IC. The firmware should first detect the controller IC and then initialise accordingly.
