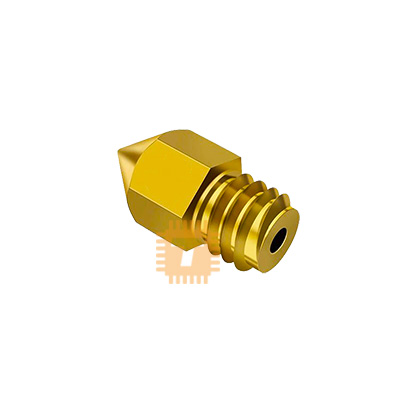

The MK8 0.3mm Brass 3D Printer Nozzle is a precision extrusion nozzle engineered for MK8-style hotends across a wide variety of desktop FDM 3D printers. Machined from high-grade, thermal-conductive brass with a precision micro-orifice, this nozzle strikes an ideal balance between the high surface detail of a 0.2mm nozzle and the reliable print speeds of a standard 0.4mm nozzle. It is designed for 1.75mm filaments to produce sharp overhangs, fine embossed lettering, and smooth curved perimeters.

Specification

• Nozzle Standard: MK8 Profile
• Orifice Output Diameter: 0.3mm
• Filament Diameter Compatibility: 1.75mm
• Material Composition: High-Purity International Standard Brass (H59 / H62)
• Thermal Conductivity: Approx. 105 W/(m·K)
• Maximum Printing Temperature: Up to 260°C - 300°C
• Screw Thread Standard: Metric M6 (M6 x 1.0mm pitch)
• Total Length: 13mm
• Hex Flat Diameter: 6mm
• Inner Bore Roughness: Ra less than 0.4 µm
• Printer Compatibility: Compatible with standard MK8 hotend heater blocks, including Creality Ender-3 series, Ender-5 series, CR-10 series, Anet A8, MakerBot, Tevo Tarantula, and other M6 MK8-threaded extruders.

Features

• Balanced Fine-Detail Orifice: The 0.3mm aperture allows for low layer heights (0.10mm - 0.20mm) and thinner line widths, producing significantly sharper corners, crisp lettering, and smoother top surfaces compared to standard 0.4mm nozzles without excessively extending print durations.
• Rapid and Uniform Heat Transfer: The high-conductivity brass body ensures efficient heat transfer across the entire melt zone, maintaining stable filament flow and strong layer-to-layer adhesion during extrusion.
• CNC Machined Mirror-Bore Interior: Engineered with a smooth internal funnel and polished cavity (Ra less than 0.4 µm) to minimize back-pressure resistance, prevent filament drag, and lower the risk of micro-clogs.
• Precision Flat Mating Surface: The flat rear shoulder ensures a flush mechanical seal against the heatbreak throat or PTFE liner when properly hot-tightened, preventing molten plastic leaks through the heater block threads.

Common Applications

• Detailed Scale Models and Miniatures: Printing figurines, tabletop models, and decorative art pieces that require crisp character features and minimal layer stair-stepping.
• Text, Logos, and Embossed Graphics: Fabricating badges, faceplates, dials, and labels with small, legible lettering and sharp vector contours.
• Precision Functional Components: Producing compact mechanical prototypes, small enclosure snap-fits, tight gears, and drone brackets where tight dimensional tolerances are necessary.

Professional Installation and Maintenance Tips

• Always Hot-Tighten the Nozzle: Install the nozzle finger-tight into the heater block while cold, heat the hotend to roughly 240°C - 250°C, hold the heater block securely with an adjustable wrench, and torque the nozzle down with a 6mm socket (approx. 1.5 to 2.0 N·m) to guarantee a leak-proof seal.
• Tune Slicer Flow and Speed Settings: Slightly lower print speeds (30mm/s to 45mm/s) and adjust retraction settings to account for the increased back-pressure inherent in a smaller 0.3mm aperture compared to a standard 0.4mm nozzle.
• Use Clean Filament and Dust Filters: Smaller nozzle orifices are more susceptible to dust and debris blockages. Keep your filament stored in a dry environment and attach a foam dust cleaner onto the filament guide before entering the extruder.
• Avoid Abrasive Composite Filaments: Do not use filaments loaded with carbon fiber, glow-in-the-dark powders, glass fiber, or metal particles with this brass nozzle, as abrasive additives will rapidly widen the 0.3mm hole and degrade print accuracy.
