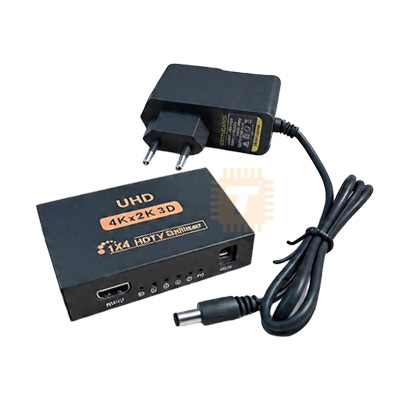

The 4-Way HDMI Splitter 4K UHD with Power Adapter is an active digital audio-video distribution amplifier engineered to duplicate a single Ultra-HD HDMI source simultaneously across four independent HDMI displays, monitors, projectors, or capture systems without signal degradation, latency, or frame dropping. Supporting video resolutions up to 4K × 2K at 30Hz, Full HD 1080p at 120Hz, and deep 3D video formats, it features an integrated signal buffer, clock recovery, and equalization amplifier to regenerate digital TMDS signals across long cable runs. Housed in a heavy-duty, heat-dissipating metallic alloy chassis and powered by an external regulated 5V DC power supply, it guarantees stable, flicker-free audio-visual streaming for sports bars, multi-display control rooms, digital signage arrays, classroom auditoriums, and retail showroom demonstrations.

Specifications

• Device Type: 1-Input to 4-Output (1x4) Active HDMI Video Splitter / Distribution Amplifier
• Input Interface: 1 × HDMI Type-A Female (19-Pin Standard Connector)
• Output Interfaces: 4 × HDMI Type-A Female (19-Pin Standard Connectors)
• HDMI Specification Compliance: HDMI 1.4b (Backward compatible with HDMI 1.3, 1.2, and 1.1)
• HDCP Protocol Compliance: HDCP 1.4 (High-bandwidth Digital Content Protection)
• Supported Video Resolutions:
  • 4K × 2K (3840 × 2160) at 30 Hz and (4096 × 2160) at 24 Hz
  • Full HD 1080p (1920 × 1080) at 50/60/120 Hz
  • 720p / 1080i / 576p / 480p / 576i / 480i
  • 3D Video Formats up to 1080p at 60 Hz
• Video Bandwidth / Data Rate: Up to 10.2 Gbps Total (Single-Link TMDS Clock Rate up to 340 MHz)
• Color Depth Support: 24-bit, 30-bit, 36-bit Deep Color (8/10/12 bits per channel)
• Digital Audio Formats: LPCM, DTS Digital, Dolby Digital, DTS-HD Master Audio, Dolby TrueHD, and Multi-channel 7.1/5.1 Surround Sound
• Transmission Distance (Using Standard AWG26 HDMI Cables):
  • At 1080p Resolution: Input up to 15 m (49 ft), Output up to 15 m (49 ft)
  • At 4K UHD Resolution: Input up to 8 m (26 ft), Output up to 10 m (33 ft)
• Power Supply Input: External AC 100 V–240 V (50/60 Hz) to DC 5.0 V / 1.0 A–2.0 A Power Adapter (Barrel Jack: 5.5 × 2.1 mm)
• Operating Power Consumption: ≤ 3.0 W to 5.0 W Max.
• Status Indicators:
  • 1 × Red/Green LED: Power Status (PWR)
  • 4 × Blue LEDs: Output Link Status (Out 1 / Out 2 / Out 3 / Out 4 Active Signal Detect)
• Enclosure Material: Stamped Cold-Rolled Steel / Aluminum Alloy Housing with Anti-Interference Shielding
• Operating Temperature: -15°C to +55°C (5°F to 131°F)
• Operating Humidity: 5% to 90% RH (Non-condensing)
• Dimensions: Approx. 96 mm × 62 mm × 22 mm
• Net Weight: Approx. 120 g to 160 g (Splitter unit alone)

Features

• Simultaneous Quad Mirroring: Distributes uncompressed 4K video and multi-channel surround sound from a single HDMI source to four screens simultaneously without lag, visual stutter, or resolution loss.
• Active External DC 5V Power Delivery: Dedicated external power supply delivers stable current to all four output ports, avoiding the signal loss, screen blackouts, and handshake failures common to unpowered passive splitters.
• Active TMDS Signal Equalization: Onboard line buffers regenerate, amplify, and synchronize digital TMDS signals, enabling reliable transmission through long cable runs without sparkle artifacts or visual noise.
• Intelligent EDID Negotiation: Reads connected display profiles automatically and negotiates the optimal shared resolution and audio standard across all four screens for seamless plug-and-play setup.
• Robust Industrial Metal Enclosure: Sturdy stamped metal housing accelerates passive heat dissipation during 24/7 commercial operation while providing RF/EMI shielding against adjacent Wi-Fi and power lines.

Common Applications

• Commercial Sports Bars & Restaurants: Distributing satellite TV feeds, live sporting events, and media players simultaneously across four overhead dining displays.
• Digital Signage & Retail Showrooms: Broadcasting synchronized promotional video loops and product showcases across multiple storefront screens or exhibition kiosks.
• CCTV & Security Control Rooms: Mirroring multi-camera NVR/DVR monitor feeds across four viewing stations in guard rooms, manager offices, and entrance lobbies.
• Auditoriums, Churches & Classrooms: Splitting a presenter’s laptop feed to dual projection screens, a lectern confidence monitor, and an external recording console.
• Gaming Lounges & Stream Production: Duplicating console outputs (PS5, Xbox, Nintendo Switch) to local low-latency gaming monitors and multi-channel capture or streaming rigs.

Usage Tips

• Splitter vs. Switch Clarification (CRITICAL):
  • This unit is a 1-Input to 4-Output Splitter (Duplicate / Mirror Mode only). It duplicates identical content from one source onto four screens.
  • It does NOT support "Extended Desktop Mode" (it cannot show four different desktop screens from a single PC port). For extended independent screens, a multi-output graphics card or a USB-C MST hub is required.
  • It is not an HDMI switch (it cannot switch between four computers to a single monitor).
• Lowest Common Denominator Resolution Rule: If you connect displays with varying native resolutions (e.g., three 4K TVs and one 1080p Monitor), the splitter will negotiate with the media source to drop the output resolution to the lowest common capability (1080p) so all four monitors can display an image. Use matching 4K displays if you require 4K output across all channels.
• Power Sequencing Order: Connect all HDMI input and output cables first, then plug in the DC 5V power adapter last. Powering the device after physical connections are seated triggers a clean, simultaneous EDID handshake across all connected sinks.
• HDMI Cable Quality Recommendations: To ensure 4K@30Hz signal integrity without flickering or intermittent blackouts, use certified High-Speed HDMI 1.4 or HDMI 2.0 cables (26 AWG or thicker copper cores). Avoid daisy-chaining cheap, thin HDMI cables or exceeding recommended run lengths.
• HDCP Handshake Troubleshooting: If a connected display shows a black screen or HDCP error when playing protected streaming services (Netflix, Prime Video, Blu-ray), power cycle the splitter by unplugging the DC 5V barrel jack for 5 seconds and reconnecting it with all screens powered on.
