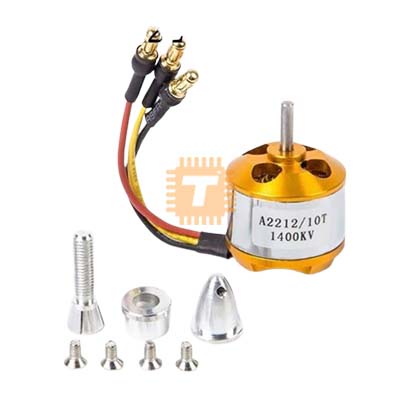

A2212 is a brushless outrunner DC motor specifically made to power Quadcopters and Multirotors. It is a 1400kV motor. It provides high performance, super power and brilliant efficiency. These motors are perfect for medium-size quadcopters with 8 inch to 10 inch propellers Use this to build powerful and efficient quadcopters.

Perfect with our F450 quadcopter frame. Our 30A ESCs can be used to drive the motor.

Specification

• KV: 1400 kV
• No load Current : 10 V, 0.5 A.
• Current Capacity: 12A/60s
• No Load Current @ 10V: 0.5A
• No. Of Cells: 2-3 LiPo
• Motor Dimensions: 27.5 x 30mm
• Shaft Diameter: 934; 3.17mm
• Shaft diameter : 3.175mm.
• Minimum ESC Specification: 18A (30A Suggested)
• Thrust at 3S with 1045 propeller: 1200 gms (Approx.)
• Thrust at 3S with 0945 propeller: 750 gms (Approx.)
• Thrust at 3S with 0845 propeller: 650 gms (Approx.)
