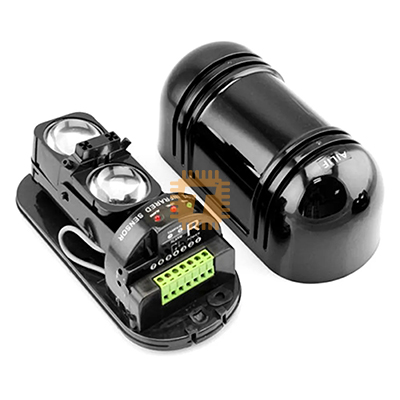

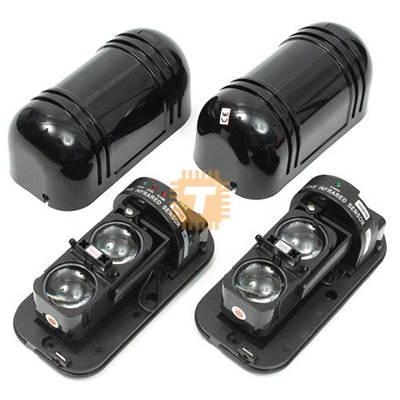

The ABT-150 Infrared Movement Detection Sensor Kit is a high-performance outdoor dual-beam IR detector engineered for reliable perimeter protection in harsh environments. Designed with advanced optical and digital filtering technologies, it delivers stable detection even under strong sunlight, fog, rain, and electrical interference.

With automatic environmental recognition and sensitivity adjustment, the ABT-150 ensures accurate intrusion detection while minimizing false alarms caused by glare, reflections, or weather conditions.

Key Features

• Anti-Glare up to 50,000 LUX
  Built-in automatic strong-light filtering system prevents false triggers from sunlight, vehicle headlights, and reflections
• Advanced Optical Design
  Optical glass with special multi-layer coating enables beam penetration through rain, snow, fog, and harsh environments
• Automatic Sensitivity Adjustment
  Sensitivity increases automatically during foggy or inclement weather for stable detection
• Automatic Environment Recognition Circuit (EDC)
  Effectively avoids reflective and environmental interference
• Dual-Beam Detection Logic
  Alarm is triggered only when both beams are blocked simultaneously, reducing false alarms
• High RFI / EMI Immunity
  Resistant to radio frequency and electromagnetic interference
• Digital Filter Circuit Design
  Ensures accurate signal processing and stable operation
• 99% Photographic Margin
  Provides reliable and precise beam alignment
• Built-in Optical Sight
  Allows fast and accurate beam alignment during installation
• Anti-Lightning Protection Circuit
  Protects the device during thunderstorms and unstable power conditions
• Adjustable Beam Interruption Cycle
  Flexible configuration for different security requirements
• Robust Integrated Structure
  Designed to operate reliably in harsh outdoor environments
• Easy Beam Alignment
  Horizontal and vertical optical angles are adjustable for quick calibration

Specifications

• Number of Beams: 2
• Detection Mode: Both beams must be blocked simultaneously
• Optical Source: Infrared digital pulse beam
• Detection Range: Up to 100 m
• Response Speed: 50 – 700 ms
• Relay Output: NO / NC
• Power Supply: DC 12 V – 24 V
• Horizontal Adjustment Axis: 180° ± 90°
• Vertical Adjustment Axis: ±10°
• Operating Temperature: −25 °C to +55 °C
• Operating Humidity: 5% – 95% RH
• Material: ABS colophony

Applications

• Perimeter intrusion detection
• Outdoor security systems
• Driveway and gate monitoring
• Alarm system triggering
• Industrial, commercial, and residential security installations
