Summary

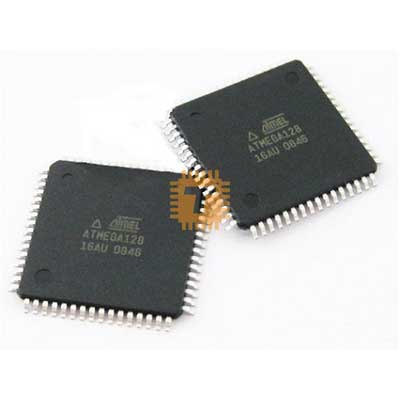

The high-performance, low-power Microchip 8-bit AVR® RISC-based microcontroller combines 128 KB flash memory with read-while-write capabilities, 4 KB EEPROM, 4 KB SRAM, 53 general purpose I/O lines, 32 general purpose working registers, a real-time counter, four flexible timer/counters with compare modes and PWM, two USARTs, a byte-oriented Two-Wire serial interface, an 8-channel/10-bit A/D converter with optional differential input stage with programmable gain, programmable watchdog timer with internal oscillator, SPI serial port, a JTAG (IEEE® 1149.1 compliant) test interface for accessing the on-chip debugging and programming, and six software selectable power saving modes. The device operates between 2.7-5.5 volts.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching one MIPS per MHz, balancing power consumption and processing speed.

Parametrics

• Program Memory Type:Flash
• Program Memory Size (KB):128
• CPU Speed (MIPS/DMIPS): 16
• SRAM (B): 4,096
• Data EEPROM/HEF (bytes): 4096
• Digital Communication Peripherals: 2-UART, 1-SPI, 1-I2C
• Capture/Compare/PWM Peripherals: 2 Input Capture, 2 CCP, 8PWM
• Timers: 2 x 8-bit, 2 x 16-bit
• Number of Comparators: 1
• Temperature Range (°C): -40 to 85
• Operating Voltage Range (V): 2.7 to 5.5
• Pin Count: 64

Supplier link: https://www.microchip.com/wwwproducts/en/ATMEGA128A
