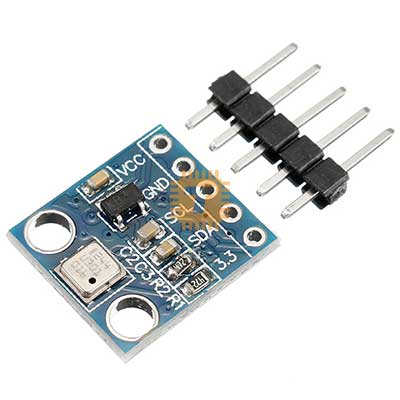

BMP180 5-pin 1.8V to 5V Digital Barometric Pressure Temperature and Altitude Sensor for Arduino (MD0068) Products
| Name | BMP180 5-pin 1.8V to 5V Digital Barometric Pressure Temperature and Altitude Sensor for Arduino |
| Code | MD0068 |
| Price | Rs.290.00 |
| In Stock | Yes |
| Package | MODULE |
Product Details
Specifications:
- Barometric Pressure Sensing Range: 300hPa to 1100 hPa (-500m to +9000m relating to sea level) with accuracy down to 0.02 hPa, in advanced resolution mode
- Resolution: 0.03hPa (0.25m)
- Temperature Sensor Accuracy: +-3.6 Fahrenheit (+-2 Celsius)
- Supply Voltage: 1.8V to 6V; when using a supply voltage of 3.3V or less, connect the supply voltage to the "3.3" pin instead of the "VCC" pin
- I2C Interface
- I2C Device Address: 0x77
- Max I2C Speed: 3.4Mbit/sec. (I2C standard, fast and high-speed mode supported)
- Low noise, with 0.06hPa (0.5m) in ultra low power mode and 0.02hPa (0.17m) advanced resolution mode
- Pins are breadboard compatible
- Operating Temperature Range: -40 to 185 Fahrenheit (-40 to 85 Celsius)
- Dimensions (excluding pins): 15mm (0.6") length x 13.5mm (0.05") width x 2.6mm (0.1") height
- Weight: 0.95g (0.03oz)
