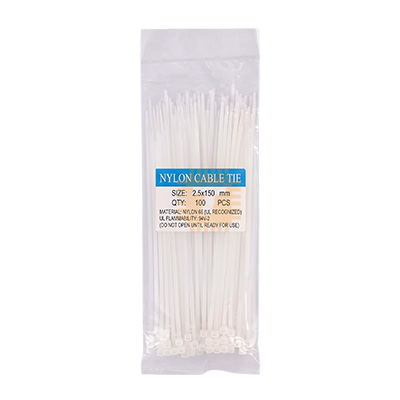

The Cable Tie 2.5x150mm White (100pcs Pack) is an extended-length, industrial-grade nylon zip tie pack engineered for clean wire harnessing, robotics loom management, 3D printer cable routing, and general-purpose mechanical fastening. Molded from premium virgin Polyamide 66 (Nylon 6/6), each tie features an integrated one-piece ratcheting locking head and continuous transverse serrations that provide low-effort insertion and high tensile pull-out resistance. Offering an extended 150 mm reach with a slender 2.5 mm width, this versatile pack is designed to bundle medium-diameter wiring looms, organize tubing runs, and secure hardware inside crowded electronics enclosures with a neat, professional white aesthetic.

Specifications

• Product Type: Self-Locking One-Piece Nylon Cable Ties (Zip Ties)
• Pack Quantity: 100 Pieces per Pack
• Nominal Dimensions: 2.5 mm Width × 150 mm Length (Approx. 0.10 × 6.0 Inches)
• Actual Strap Width: Approx. 2.4 mm to 2.5 mm
• Strap Thickness: Approx. 1.0 mm to 1.1 mm
• Maximum Bundle Diameter: Approx. 35 mm to 38 mm (~1.4 to 1.5 Inches)
• Minimum Bundle Diameter: Approx. 2.0 mm to 3.0 mm
• Material: Virgin Polyamide 66 (PA66 / Nylon 6/6)
• Loop Tensile Strength: Approx. 8 kg (18 lbs / ~80 N minimum tensile rating)
• Color / Finish: Natural White / Semi-Translucent Neutral
• Flammability Rating: UL 94V-2 (Self-extinguishing)
• Operating Temperature Envelope: -40°C to +85°C (-40°F to +185°F)
• Dielectric Strength: Approx. 50 kV/mm (High electrical insulation properties)
• Locking Mechanism: Integrated Plastic Ratchet Pawl with Non-Releasable Internal Cam
• Chemical Resistance: Highly resistant to mineral oils, greases, weak organic acids, alkalis, and aliphatic solvents
• Net Pack Weight: Approx. 45 g to 52 g (Total for 100 pcs)

Features

• Extended 150mm Reach: Provides generous loop circumference to gather thicker cable trunks, bundle multiple flexible conduit hoses, or secure wiring around structural frame extrusions without chaining ties together.
• High-Tensile Virgin PA66: Formulated without recycled regrind polymer, delivering high elasticity, bend fatigue resilience, and reliable strength without brittle snapping during manual tensioning.
• Precision One-Way Ratcheting Pawl: Integrates an internal locking pawl that engages cleanly with the linear track serrations, guaranteeing zero slip-back even under ongoing mechanical vibration.
• Ergonomic Tapered Tail: Gently curved, smooth tip guides quickly into the locking collar, speeding up installation in tight equipment spaces or while wearing protective workshop gloves.
• Dielectric & Non-Conductive: Provides complete electrical isolation, eliminating the hazard of electrical short circuits, ground faults, or trace chafing when strapped over high-voltage wiring and PCB standoffs.

Common Applications

• Industrial Control Panels & Enclosures: Bundling discrete wiring runs, PLC terminal leads, and relay harness assemblies neatly through slotted wire ducting and DIN rail brackets.
• 3D Printer & CNC Machine Gantry Cabling: Securing stepper motor wiring, hotend heater cables, and PTFE Bowden tubes along linear guide rails and 2020/2040 aluminum extrusions.
• Robotics & Drone Platforms: Fastening electronic speed controllers (ESCs), sensor wiring harnesses, radio receiver antennas, and power cables to chassis plates and frame arms.
• Desktop PC Cable Management: Routing ATX power looms, graphics card power leads, and multiple SATA data lines behind the motherboard mounting tray.
• Automotive & Workshop Organization: Securing auxiliary dashboard lighting, speaker wiring, and low-pressure pneumatic/vacuum tubing.

Usage Tips

• Flush Trimming Best Practice (CRITICAL):
  • After pulling the cable tie tight around the wire bundle, cut off the excess strap completely flush with the locking head using flush cutters (micro-shears).
  • Do not use blunt wire strippers or standard household scissors; they leave a sharp, diagonal plastic prong that can easily cut fingers or slice neighboring insulation jackets during subsequent maintenance.
• Tensioning Control on Signal Lines:
  • Avoid over-tightening ties around delicate high-speed data cables (such as Ethernet, USB, or unshielded sensor wires).
  • Pulling too tight compresses the inner dielectric and pinches conductor pairs, which can degrade high-frequency signals or cause intermittent line noise. Cinch until snug, ensuring the tie holds its position without squeezing the cable jacket out of round.
• UV & Outdoor Sunlight Consideration: These white cable ties are manufactured from natural PA66, making them optimal for indoor enclosures, machine chassis, and protected enclosures. For permanent outdoor installations subjected to direct sunlight, use UV-stabilized black cable ties formulated with carbon black to prevent photo-oxidation and brittleness over time.
• Maintaining Nylon Flexibility: Nylon 6/6 relies on a balanced internal moisture content (approx. 2% to 3%) to preserve its mechanical flexibility. If stored in an air-conditioned, low-humidity workshop for extended periods, keep the polybag sealed until use to keep the ties supple and prevent premature snapping during installation.
