Features:

• Support for 4-axis linkage, you can connect four stepper motor drives or servo drives;
• Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor;
• Support automatic probe tool
• Support Emergency input
• Support for limit switch
• Support for connecting electronic handwheel
• Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable
• Have 0-10V output port, you can use mach3 software to control the spindle motor speed.
• 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device
• 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device
• 1 status LED, indicate connection status on the board
• Size: 8x7.7cm / 3.15x3.03inch

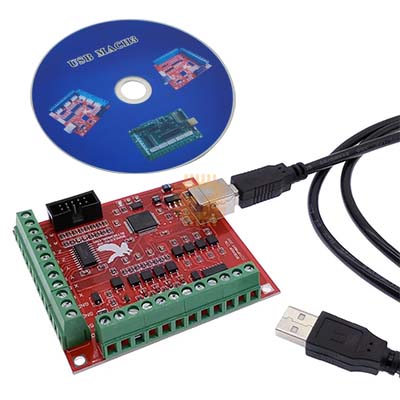

Include:

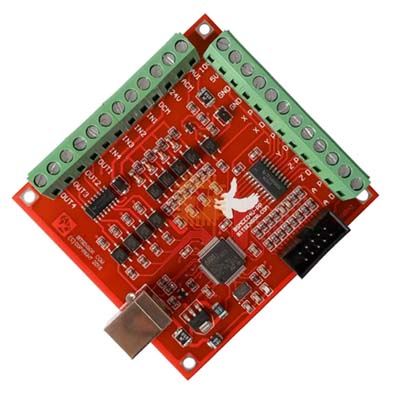

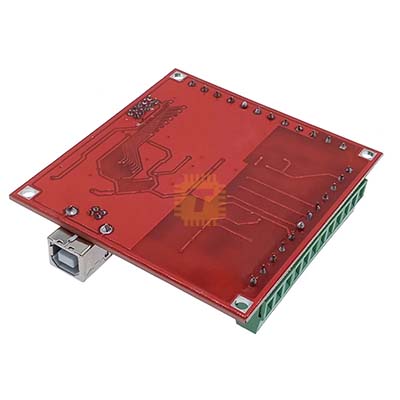

• CNC Breakout Board
• USB Cable
• Software CD
