CP2102 its high integration, built-in USB2.0 full-speed function controller, USB transceiver, crystal oscillator, EEPROM, and asynchronous serial data bus (UART), supports full-featured modem signals, without any external USB device. CP2102 with other USB-UART adapter circuit works similar to the PC through the driver's USB port into a virtual COM port in order to achieve the purpose of expansion.

Specifications:

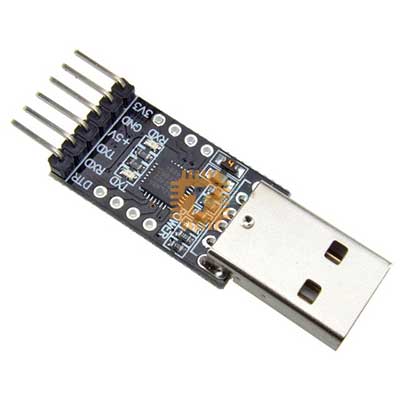

• This is a USB 2.0 to TTL UART 6PIN CP2102 Module Serial Converter. Connect MCU easily to your computer!
• Stable and reliable chipset CP2102
• USB specification 2.0 compliant with full-speed 12Mbps.

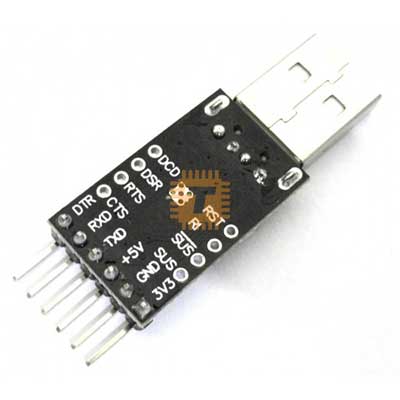

• Standard USB type A male and TTL 6pin connector. 6pins for 3.3V, RST, TXD, RXD, GND & 5V.
• All handshaking and modem interface signals.
• Baud rates: 300 bps to 1.5 Mbps.
• Byte receive buffer; 640 byte transmit buffer.
• Hardware or X-On/X-Off handshaking supported.
• Event character support Line break transmission.
• USB suspend states supported via SUSPEND pins.
• Temperature Range: -40 to +85.
• Supports Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40.
