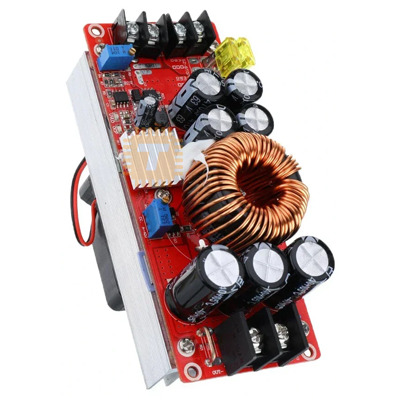

Specifications:

• Type: Non-isolated step-up module (BOOST)
• Input Voltage: 10VDC to 60VDC
• Max. Input Current: 30A (input voltage 10V to 30V) /25A (input voltage 31V to 60V)
• Quiescent Current: 15mA(will increase when convert 12V to 20V)
• Output Voltage: 12V to 90V (adjustable, default is 19V)
• Max. Output Current: 20A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)
• Constant Current Range: 0.8A to 20A(+/-0.3A)
• Reverse Input Protection: Yes (150A MOS)
• Lower Voltage Protection: Yes (V8 to 50V adjustable, self-recovery)
• Operating Temperature: - 40 to +85 (if temperature is too high, please enhance heat dissipation)
• Frequency: 150KHz
• Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be)
• Input Over-current Protection: Yes (automatically protect when input is more than 35A, and Power Source voltage will not increase)
• Short Circuit Protection: Yes(input 30A )
• Wiring Method: Terminals (please use large current copper wire)
• Max. Output Power = Input Voltage x Max Current (If input 12V, the max output power = 12Vx30A = 360W)
• Size:130 x 84 x 52mm / 5.11 x 3.3 x 2.04"
