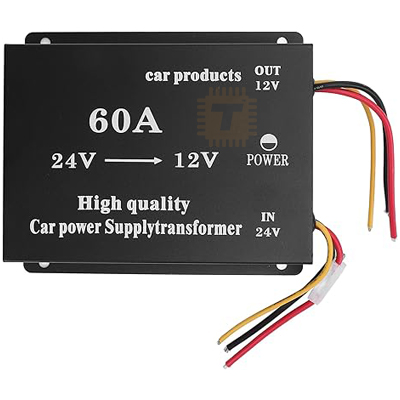

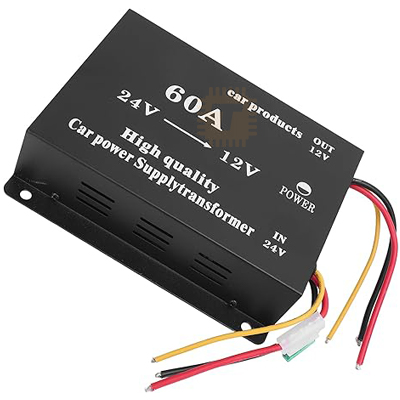

This DC-DC step-down converter is designed to transform 24V DC input voltage into a stable 12V DC output with a maximum current capacity of 60A. Built with high-quality components and durable housing, it is ideal for powering 12V automotive electronics, appliances, and accessories from a 24V power source such as trucks, buses, heavy-duty vehicles, or solar battery systems.

Features :

• Wide Input Range: Accepts DC 20V–32V input (nominal 24V).
• Stable 12V Output: Provides DC 12V regulated output, ensuring reliable performance for sensitive electronics.
• High Power Capacity: Supports up to 60A continuous current (720W max).
• Durable Build: Heavy-duty aluminum alloy housing for efficient heat dissipation and protection.
• Overload & Overheat Protection: Built-in safety features prevent damage from short circuits, overload, overheating, and overvoltage.
• Vehicle-Ready: Designed for use in trucks, buses, RVs, boats, forklifts, solar systems, and other 24V-powered vehicles.
• Versatile Application: Powers 12V equipment such as car stereos, navigation systems, LED lights, air compressors, radios, refrigerators, CCTV, and more.

Specifications :

• Input Voltage: DC 20V–32V (nominal 24V)
• Output Voltage: DC 12V (±0.5V regulated)
• Output Current: Max 60A continuous
• Power Rating: 720W
• Efficiency: ≥ 95% (high conversion efficiency)
• Ripple Noise: < 100mV>
• Protections: Over-current, over-voltage, over-temperature, short-circuit auto recovery
• Cooling: High-efficiency heat sink (some models with cooling fan)
• Material: Aluminum alloy shell with anti-corrosion coating
• Operating Temperature: -20°C to +60°C

Applications :

• Trucks, buses, RVs, boats, and forklifts
• Solar power systems and off-grid setups
• Vehicle radios, walkie-talkies, GPS, and car stereos
• LED displays, lighting systems, and CCTV cameras
• Portable refrigerators, fans, and other 12V appliances
