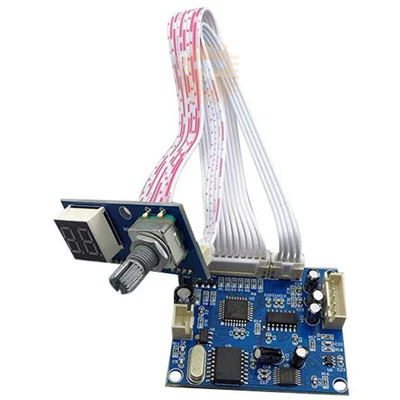

The DSP Digital Reverb Module is a compact audio effect processor designed to enhance sound with a variety of reverberation and modulation effects. Operating at a 5V DC input, this module offers 100 distinct digital signal processing (DSP) effects, making it suitable for karaoke systems, audio mixers, and DIY audio projects.

Features :

Following effects are accessible via the rotary encoder, which allows users to scroll through and select the desired effect.

• Reverb Types:
  • Small Hall (00–02)
  • Medium Hall (03–05)
  • Large Hall (06–08)
  • Church (09)
  • Small Room (10–12)
  • Medium Room (13–15)
  • Large Room (16–18)
  • Auditorium (19)
  • Gymnasium (48)
• Special Effects:
  • Metallic Sound Reverb (20–26)
  • Spring Reverb (27–29)
  • Spring Reverb Gate (30–35)
  • Reverse Reverb (36–39)
  • Early Reflection (40–43)
  • Atmospheric Effects (44–47)
  • Atmospheric FX (49)
• Delay & Modulation:
  • Delay (50–58)
  • Echo (59)
  • Chorus (60–65)
  • Flanger (66–69)
  • Phase Shift (70–73)
  • Pitch Change (74–79)
  • Reverb + Chorus (80–81)
  • Reverb + Flanger (82–83)
  • Reverb + Phase Shift (84–85)
  • Reverb + Pitch Shift (86–87)
  • Delay + Reverb (88–89)
  • Delay + Reverb Gate (90)
  • Delay + Reverse Reverb (91)
  • Delay + Chorus (92–93)
  • Delay + Flanger (94–95)
  • Delay + Phase Shift (96–97)
  • Delay + Modulation (98–99)

Specifications :

• Input Voltage: 5V DC
• Channels: Stereo (2.0)
• Control Interface: Rotary encoder with digital display for effect selection
• Dimensions: 41mm x 47mm
• Material: Plastic and metal

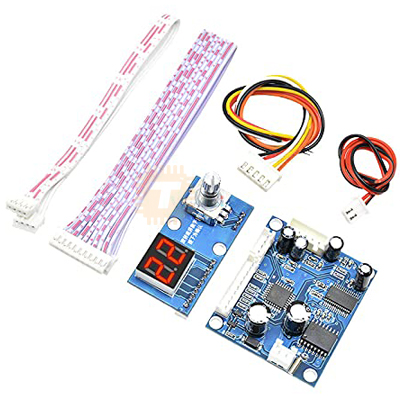

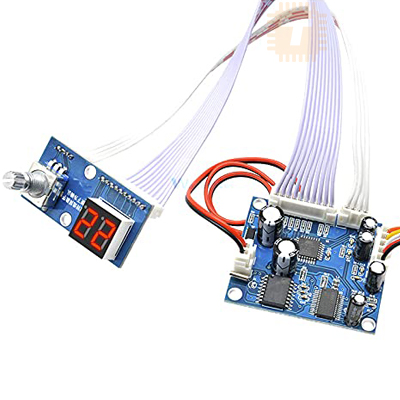

• Included Components:
  • Reverberation board
  • Control board

Applications :

This module is ideal for enhancing audio in karaoke setups, audio mixers, and DIY audio projects. It provides a straightforward method to add professional-quality reverb and effects to your audio signals. The compact size and ease of integration make it suitable for various applications, from home entertainment systems to portable audio devices.
