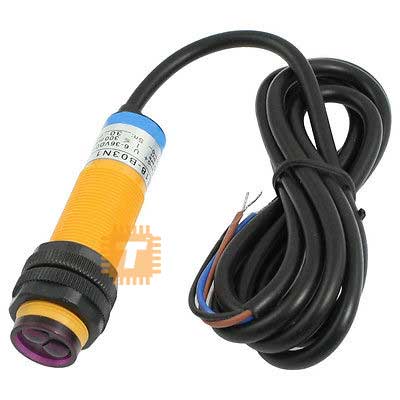

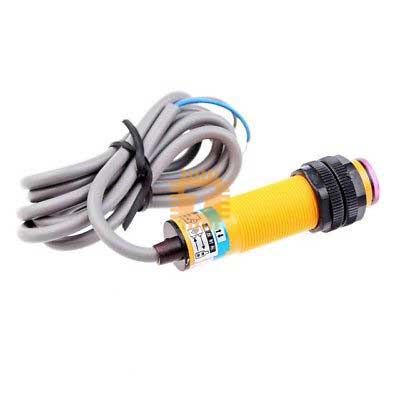

The E18-D80NK is a reliable and widely used infrared proximity sensor that detects objects without physical contact. Designed with an adjustable detection range, it’s ideal for obstacle detection, object counting, robotics, and automation systems. It uses infrared light reflection to detect objects within its sensing range and provides a digital output signal.

Key Features:

• Adjustable Sensing Range – Detects objects from 7cm to 30cm
• Non-Contact Detection – Uses reflected infrared light for obstacle sensing
• Digital Output (High/Low) – Easily interfaced with Arduino, ESP32, STM32, etc.
• Built-In Indicator LED – Shows when an object is detected
• Easy Installation – M18 threaded cylindrical body with included mounting nuts

Specifications:

• Model: E18-D80NK
• Sensing Type: Infrared Reflection (Proximity Detection)
• Detection Range: 7cm to 30cm (adjustable via potentiometer)
• Output Type: Digital (NPN, Normally Open)
• Output Voltage: 0V (low) when triggered
• Supply Voltage: 5V to 12V DC
• Current Consumption: ≤ 25mA
• Response Time: ≤ 2ms
• Light Source: Infrared LED (wavelength ~940nm)
• Indicator LED: Red LED when object detected
• Body Material: ABS Plastic
• Mounting: M18 threaded body with nuts
• Cable Length: ~45cm (3-wire: VCC, GND, OUT)
• Dimensions: 18mm diameter × 50mm length

Applications:

• Obstacle avoidance in robots
• Gesture detection and automation triggers
• Object counting on conveyor belts
• Smart home and entry detection
• Industrial automation and packaging systems
