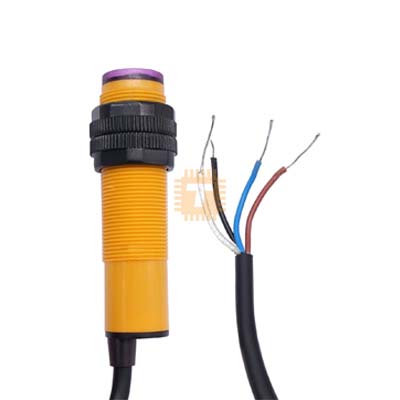

The E3F-DS30C4 is a versatile and rugged infrared proximity sensor with dual NPN outputs (Normally Open + Normally Closed) and a durable yellow ABS housing. Designed for non-contact object detection up to 30 cm, it uses diffuse reflective infrared technology and provides both NO and NC outputs, making it suitable for more complex control logic in automation, robotics, and industrial sensing.

Key Features:

• Adjustable Detection Range – Up to 30 cm with high sensitivity
• Dual NPN Output – Provides both Normally Open (NO) and Normally Closed (NC) signals
• Durable Yellow Housing – High-visibility ABS plastic for easy identification
• Intelligent Integration – 4-wire output simplifies integration with complex logic circuits
• Status Indicator LED – Lights up when an object is detected

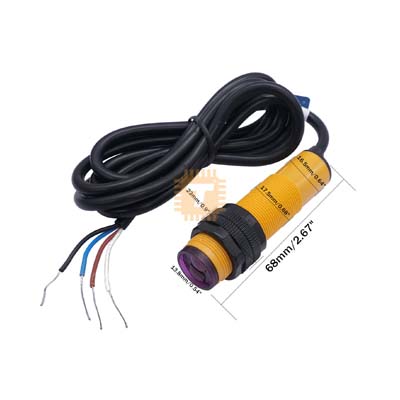

• Standard M18 Threaded Body – Easy installation with included nuts

Specifications:

• Model: E3F-DS30C4 (Yellow Housing)
• Detection Range: 7 – 30 cm (adjustable)
• Sensing Method: Infrared Diffuse Reflective
• Output Type: NPN (NO + NC)
• Wiring Type: 4-wire: Brown (V+), Blue (GND), Black (NO), White (NC)
• Output Signal: Digital, Low-level when active
• Supply Voltage: 6V – 36V DC
• Current Consumption: ≤ 100 mA
• Response Time: ≤ 2 ms
• Light Source: Infrared LED (≈ 850nm wavelength)
• Sensitivity Adjustment: Yes (via potentiometer)
• Indicator LED: Red (lights on detection)
• Housing Material: ABS Plastic (Yellow)
• Mounting Thread: M18 x 1.0
• Cable Length: 45cm Approx.
• Operating Temperature: -25°C to +55°C

Applications:

• Object and vehicle detection
• Autonomous robotic navigation
• Conveyor systems and counting automation
• Smart manufacturing and industrial automation
• Entry control and smart gates
