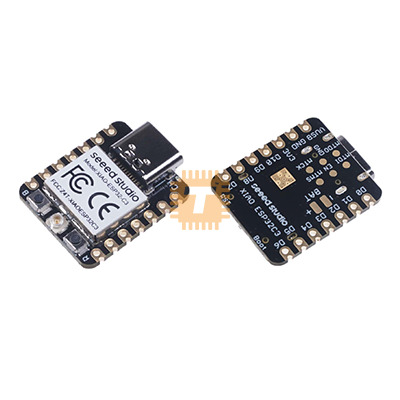

The Seeed Studio XIAO ESP32C3 is an IoT mini development board based on the Espressif ESP32-C3 WiFi/Bluetooth dual-mode chip. ESP32-C3 is a 32-bit RISC-V CPU, which includes an FPU (Floating Point Unit) for 32-bit single-precision arithmetic with powerful computing power. It has excellent radio frequency performance, supporting IEEE 802.11 b/g/n WiFi, and Bluetooth 5 (LE) protocols.

This board comes with an external antenna to increase the signal strength for your wireless applications. It is equipped with rich interfaces and has 11 digital I/O that can be used as PWM pins and 4 analog I/O that can be used as ADC pins. It supports four serial interfaces such as UART, I2C and SPI. There is also a small reset button and a bootloader mode button on the board. XIAO ESP32C3 is fully compatible with the Grove Shield for Seeeduino XIAO and Seeeduino XIAO Expansion board except for the Seeeduino XIAO Expansion board, the SWD spring contacts on the board will not be compatible.

Features:

• Flexible MCU Board: Incorporates the ESP32-C3 32-bit RISC-V chip, operating up to 160 Powerful CPU: ESP32-C3, 32­bit RISC­-V single­core processor that operates at up to 160 MHz
• Complete Wi-Fi subsystem: Complies with IEEE 802.11b/g/n protocol and supports Station mode, SoftAP mode, SoftAP + Station mode, and promiscuous mode
• Bluetooth LE subsystem: Supports features of Bluetooth 5 and Bluetooth mesh
• Ultra-Low Power: Deep sleep power consumption is about 43μA
• Better RF performance: External RF antenna included
• Battery charging chip: Supports lithium battery charge and discharge management
• Rich on-chip resources: 400KB of SRAM, and 4MB of on-board flash memory
• Ultra small size: As small as a thumb (20x17.5mm) which is a best option for wearable devices and small projects
• Reliable security features: Cryptographic hardware accelerators that support AES-128/256, Hash, RSA, HMAC, digital signature and secure boot
• Rich interfaces: 1xI2C, 1xSPI, 2xUART, 11xGPIO(PWM), 4xADC, 1xJTAG bonding pad interface
• Breadboard-friendly & SMD design, no components on the back
