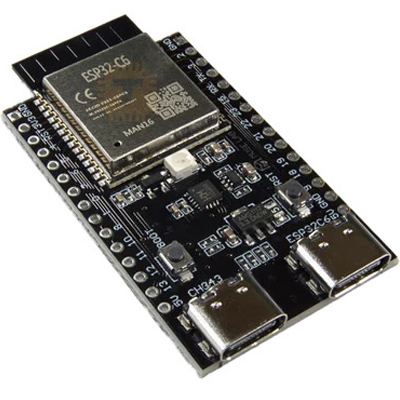

A compact, high-performance development board built around the ESP32-C6 SoC, designed for modern wireless applications including Wi-Fi 6, Bluetooth 5.3, Zigbee, Thread, and Matter. With dual USB-C ports and a breadboard-friendly layout, it’s ideal for prototyping secure, low-power IoT devices.

Specifications

• Core SoC: ESP32-C6 (32-bit RISC-V single-core processor)
• Wireless Connectivity:
  • Wi-Fi 6 (802.11ax) – 2.4 GHz
  • Bluetooth 5.3 LE
  • IEEE 802.15.4 (Zigbee, Thread, Matter)
• USB Interfaces:
  • USB Type-C (native USB 2.0, 12 Mbps)
  • USB-to-UART bridge (e.g., CH343)
• GPIO Access: Most I/O pins broken out to dual-side headers
• Power Supply:
  • 5V via USB
  • Onboard 5V to 3.3V DC/DC regulator
• Onboard Components:
  • WS2812 RGB LED (GPIO8)
  • Boot & Reset buttons
  • Current measurement jumper (J5)
• Antenna: PCB trace antenna
• Form Factor: Breadboard-compatible layout

Features

• Dual USB-C ports for native USB and UART-based flashing/debugging
• Native USB support for HID, CDC, and custom USB device classes
• Multi-protocol wireless stack for Matter, Zigbee, Thread, BLE Mesh
• Low-power architecture with deep sleep and wake-on-radio
• Compatible with ESP-IDF and Arduino frameworks
• Ideal for secure IoT, smart home, and wearable applications
