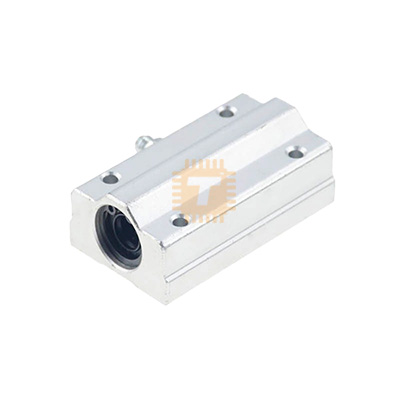

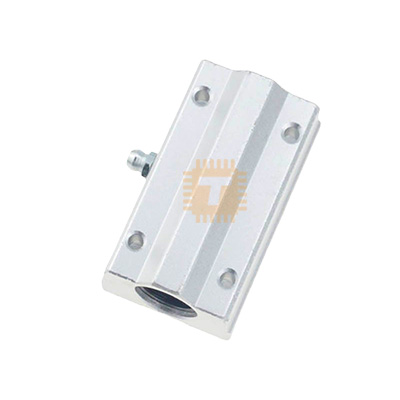

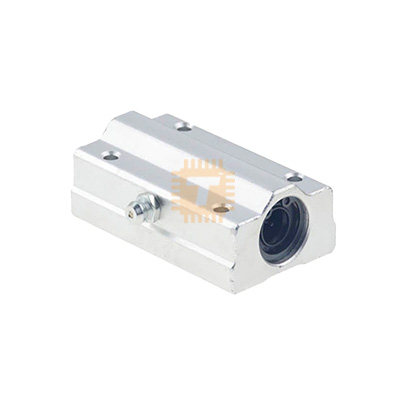

The SCS8LUU Extended 8mm Linear Bearing Block with Grease Nipple is a long-body linear motion slider unit designed for smooth, precise, and low-friction movement along 8mm smooth guide shafts. Featuring an extended aluminum pillow block housing dual internal LM8LUU linear ball bearings and a dedicated grease lubrication port, this unit provides double the load-bearing capacity and superior moment rigidity compared to standard short-length blocks, making it an ideal motion-guide component for 3D printers, CNC routers, laser engravers, and automated linear actuators.

Specification

• Model Designation: SCS8LUU / SC8LUU (Long / Extended Series)
• Shaft Compatibility: 8mm Diameter Hardened Smooth Optical Rod / Linear Shaft
• Internal Bearing Core: Dual LM8LUU Linear Recirculating Ball Bearing Bushing
• Housing Material: High-Strength Anodized Aluminum Alloy Block
• Bearing Ball Material: High-Carbon Chromium Bearing Steel (GCr15)
• Lubrication Port: Integrated Top/Side Brass Grease Nipple (Zerk Fitting)
• Mounting Hole Standard: 4 x M4 Threaded Mounting Holes on Top Face
• Total Dimensions (L x W x H): Approx. 58mm x 34mm x 22mm
• Mounting Hole Spacing: 42mm (Lengthwise) x 24mm (Widthwise)
• Basic Dynamic Load Rating (C): Approx. 431 N
• Basic Static Load Rating (C0): Approx. 784 N
• Dust Sealing: Dual Synthetic Rubber End Seals (Wipers) on Both Ends

Features

• Extended Dual-Bearing Core: The long-body design incorporates dual recirculating ball tracks, offering greater dynamic stability, increased load capacity, and enhanced resistance to pitch and yaw twisting forces compared to single-length blocks.
• Integrated Grease Nipple Port: Equipped with a built-in grease fitting, allowing for easy, direct injection of bearing lubricant without needing to disassemble the gantry or remove the slider from the guide shaft.
• Precision CNC Anodized Housing: The rigid aluminum pillow block provides corrosion resistance, lightweight structural support, and flat machined mounting surfaces for reliable perpendicular alignment.
• Integrated Dust and Debris Wipers: Flexible rubber lip seals on both ends sweep away dust, wood chips, and plastic debris from the shaft during operation, keeping the internal ball tracks clean and extending service life.
• Standard M4 Mounting Pattern: Features four standard M4 threaded holes on the upper surface for straightforward bolting to 3D printer build plates, CNC carriages, or custom bracket assemblies.

Common Applications

• 3D Printer Bed and Gantry Movement: Guiding Y-axis heatbed carriages and X-axis toolheads on desktop FDM 3D printers such as Prusa i3 clones, Anet A8, and custom CoreXY builds.
• Desktop CNC Routers and Engravers: Providing rigid linear guidance for light-duty milling carriages, diode laser modules, and engraving gantries along 8mm guide rails.
• Automated Linear Actuators and Pick-and-Place: Serving as sliding carriages for timing-belt or lead-screw-driven linear positioning stages and robotics automation rigs.
• Camera Sliders and Laboratory Fixtures: Smooth, low-noise sliding platforms for motorized camera rigs, optical test benches, and fluid dispensing mechanisms.

Professional Installation and Maintenance Tips

• Inspect and Lubricate Before First Operation: Factory storage oil is intended for rust prevention, not continuous running lubrication. Inject a small amount of lithium or PTFE-based bearing grease through the grease nipple before running the block under working load.
• Align Parallel Guide Rods Carefully: When using two parallel 8mm smooth shafts, ensure they are perfectly parallel across their entire length before tightening the pillow block mounting screws. Even slight shaft misalignment will cause ball binding, increased friction, and premature wear.
• Slide On with Chamfered Shaft Ends: Ensure the 8mm steel rods have a clean, deburred, chamfered edge before sliding the bearing block onto the shaft. Forcing the block onto a sharp-edged shaft can dislodge the internal steel balls or damage the rubber lip seals.
• Do Not Over-Torque M4 Mounting Bolts: When fastening the block to a carriage plate, torque the M4 bolts evenly in a cross pattern (approx. 2.0 to 2.5 N·m) to avoid warping the aluminum casing, which can pinch the internal bearing sleeve and restrict smooth motion.
