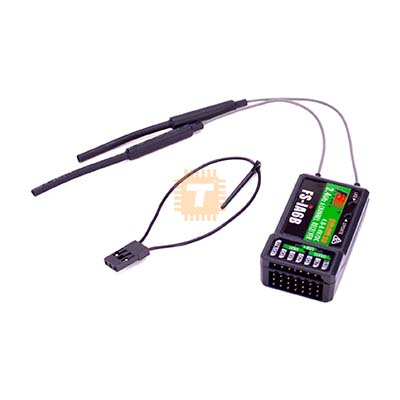

Features:

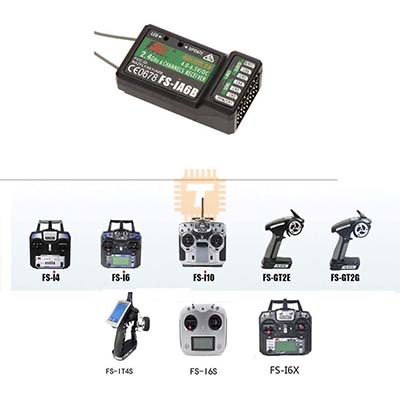

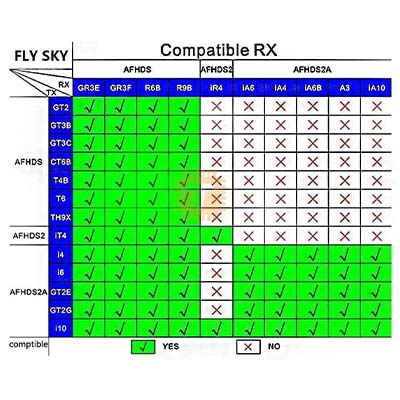

• Suitable for FS-I6X FS-I6S I8 RC transmitters, etc. It can be used on airplane, glider or helicopter.
• FS-iA6B adopts 26mm dual antennas that obtain radio-frequency signal.
• The indicator light shows the power supply and working status of the receiver in real time.
• 2.4G modes: automatic frequency hopping digital system second generation.

Specifications:

• Model type: Airplane / Glider / Helicopter
• Band width number: 140
• Transmitting power: not more than 20 dBm
• RF receiver sensitivity: -105dbm
• 2.4G mode: the second generation of an enhanced version of the automatic FM digital system
• Encoding: GFSK
• i-Bus interface: Yes
• Data acquisition interface: Yes
• PWM channel: 6
• Wireless frequency: 2.4GHz
• Wireless protocol: AFHDS 2A
• Range: 500 ～ 1500m (in the air)

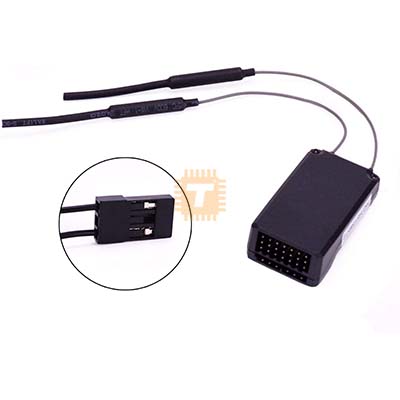

• Antenna type: Dual copper tube antenna (150mm * 2)
• Power: 4.0-8.4V
• RSSI: Supported
• Data port: PWM / PPM / i.bus / s.bus
• Temperature range: -10 ℃ — + 60 ℃
• Humidity range: 20% -95%
• Online Update: Yes
• Dimensions: 47 * 26.2 * 15 mm
• Weight: 10g
• Certification: CE, RCM, FCC ID: N4ZFLYSKYIA10
