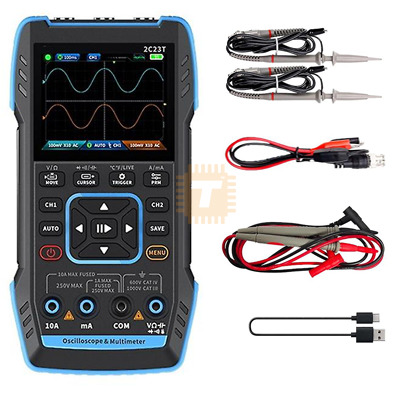

TA1142 - FNIRSI 2C23T Dual Channel Digital Oscilloscope Multimeter (3 in 1)

FNIRSI 2C23T Dual Channel Digital Oscilloscope Multimeter (3 in 1) (TA1142) Products

We are sorry but the product is out of stock, please check back after few days.

Name	FNIRSI 2C23T Dual Channel Digital Oscilloscope Multimeter (3 in 1)
Code	TA1142
Price	Rs.26,500.00
In Stock	No
Package	SCOPE

Product Details

Details

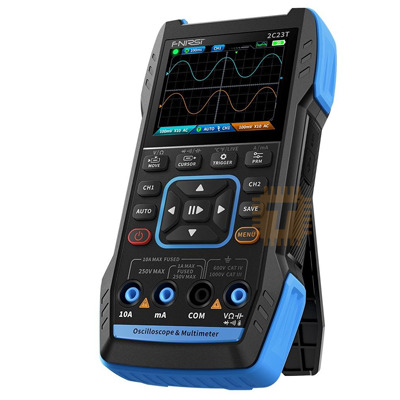

The Fnirsi 2C23T oscilloscope is an affordable handheld oscilloscope, function generator and multimeter. This device combines multiple practical functions while keeping a slim and portable design. The oscilloscope has a bandwidth of 10MHz, a sample rate of 50MS/s and 2 channels. In addition, it has a waveform saving feature, allowing for storage and later analysis of data. The function generator has a single channel, a frequency range of 1Hz-2MHz and an amplitude of 0.1-3.3V. The function generator can also output 7 different waveforms. The multimeter has 10.000 counts and supports AC/DC power and current measurements.

The 2C23T has a 2.8" LCD color screen and is powered by a built-in 3000mAh battery, offering up to 6 hours of continuous use in standby mode.

Specifications

Oscilloscope

Bandwidth	10 MHz
Channels
Memory depth	32 kpts
Sample rate	50 MS/s
Vertical scale	20 mV/div - 10 V/div
Display	2.8" LCD (320x240)
Dimensions	167 x 89 x 35 mm
Weight	300 g

Function generator

Bandwidth	1 Hz - 2 MHz
Channels
Frequency resolution	1 Hz - 2 MHz
Amplitude range	0.1 - 3.3 Vpp
Waveform length	16 kpts
Built-in functions	Sine, Square, Triangular, Full, Half, Noice, DC

Multimeter

Display resolution	10000 counts
Max. AC voltage
Max. DC voltage
Max. AC current	10 A
Max. DC current	10 A
Max. resistance	100 MΩ
Max. capacitance	100 mF
Temperature
Duty cycle
Other functions	Diode, Continuity, Non-Contact Voltage detection
True-RMS	Yes
Data logging	Yes
