TA1221 - Hantek 1008C 8 Channel USB PC Oscilloscope with CC-65 AC/DC Current Clamp and 2x HT201 20:1 Attenuator

Hantek 1008C 8 Channel USB PC Oscilloscope with CC-65 AC/DC Current Clamp and 2x HT201 20:1 Attenuator (TA1221) Products

Name	Hantek 1008C 8 Channel USB PC Oscilloscope with CC-65 AC/DC Current Clamp and 2x HT201 20:1 Attenuator
Code	TA1221
Price	Rs.63,650.00
In Stock	Yes
Package	SCOPE

Product Details

This package contains following devices specially designed for perfect vehicle testing.

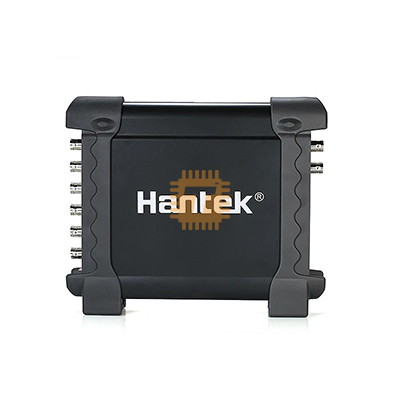

Hantek 1008C 8 Channel USB PC Oscilloscope x 1
CC-650 Current Clamp x 1
HT-201 Attenuator x 2

1. Oscilloscope

Description

Hantek 1008C 8 Channel USB PC Oscilloscope is a specially designed oscilloscope for vehicle testing. It supports over 80 types of automotive diagnostic function (Ignition/Sensor/Bus detection/Performe/Starter and charging circuits etc...). Its Video Help Function provides the video help of diagnostic which can be watched online. The diagnostic results generates a diagnostic report which can be used to print or take screenshots by pushing a key with several methods to save the data. It can record waveforms for a long time and simulate camshaft and crankshaft signals. It can transmit signals through USB 2.0 interface and no extra power supply is needed.

Features

Cost-effective Hantek PC USB 8CH Automotive Diagnostic Oscilloscope/DAQ/Programmable Generator: Highly efficient and cost -effective;
8 channels oscilloscope for vehicle testing;
Auto Ignition Probe;
2.4MSa/s real time sampling rate, 12bit vertical resolution;
spectrum analysis function;
10mV/div to 5V/div input sensitivity;
DAQ card function;
8 channels programmable generator which can analog signals of crankshaft, camshaft, etc.

Functions

1. Vehicle Testing

First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition
Ignition: primary and secondary
Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
Performer: Petrol/Diesel
Starter and charging circuits

2. Oscilloscope

8 channels oscilloscope, 2.4MSa/s real time sampling rate
12 bits vertical resolution, spectrum analysis function

3. Programmable Generator

8 channels programmable generator
Can analog signals of crankshaft, camshaft etc.

4. Others

USB 2.0 interface plug and play, and no need extra power supply;
More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use

Specification

Model		Hantek1008C
Oscilloscope Mode
Vertical	Analog Channel	8
	Input Impedance	Resistance: 1MÎ©
	Input Sensitivity	10mV/div to 5V/div
	Input Coupling	DC
	Resolution	12 bits
Horizontal	Memory Depth	4K
	Max. Input	400V (DC+AC Peak)
	Real-Time Sampling Rate	2.4MSa/s
	Time Base Range	1ns/div to 20000s/div(1-2-5 sequences)
	Time Base Precision	±50ppm
Trigger	Source	CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8
Trigger	Mode	Edge
X-Y Mode	X-Axis Input	CH1
X-Y Mode	Y-Axis Input	CH2
Cursors and Measurement	Voltage Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot
	Time Measurement	Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
	Cursors Measurement	Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process		+,- , x,÷, FFT, Invert
Voltage Range		10mV to 5V/div @ x 1 probe
		100mV to 50V/div @ x 10 probe
		10V to 5000V/div @ x 1000 probe
		100V to 50000V/div @ x 10000 probe
		200mV to 100V/div @ 20:1
Current Range		100mA to 50.0A/div @ CC65(20A)
		1000mA to 500.0A/div @ CC65(65A)
		1A to 100.0A/div @ CC650(60A)
		10A to 1000.0A/div @ CC650(650A)
		1A to 200.0A/div @CC1100(100A)
		10A to 2000.0A/div @CC1100(1100A)
Cursor		Time/frequency difference, voltage difference
FFT		Rectangular, Hanning, Hamming, Blackman Window
Math		Addition, subtraction, multiplication, division
Programmable Generator
Channel		8
Output Level		LVTTL
Frequency Range		0-250kHz
Interface		USB 2.0
Power		No need extra power supply

2. CC-650 Current Clamp

Features

AC/DC frequency range: Up to 400Hz
Effective Measurement Range: 20mA to 650A DC
It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data

Application

Power circuit measurement and malfunction analysis;
Motor drive of frequency converter (or other electronics) measurement;
Power electronics equipment measurement.

Specifications

Efficient Measure Range: 1mV/100mA: 100mA to 20A, Multimeter Range is set to DC or rms AC 200mV. 1mV/1A: 1A to 200A, Multimeter Range is set to DC or rms AC 200mV; 200A to 650A, DC or rms AC 2V
DC Current Accuracy: 0 to 650A, +/- (3% reading + 2A )
AC Current Accuracy: 50Hz arrive at 400Hz
Suitable Conductor Size: Max. 30mm/1.2" in diameter
Low Electric Quantity Indicator: Red LED Lighting
Operating Temperature: 0°C to 50°C and 70%
Storage Temperature: -20°C to +70°C and 80%
Output: BNC Plug

3. HT-201 Attenuator

Features

This item has been designed to allow fuel injector and primary ignition waveforms to be measured using Hantek oscilloscope product
Can allow oscilloscope to measure fuel injector and primary ignition waveforms
Passive attenuator with 20:1 attenuation
If input a 20V signal, it can output a 1V signal
By using this item, oscilloscope can measure voltage higher than its range (*20V)
