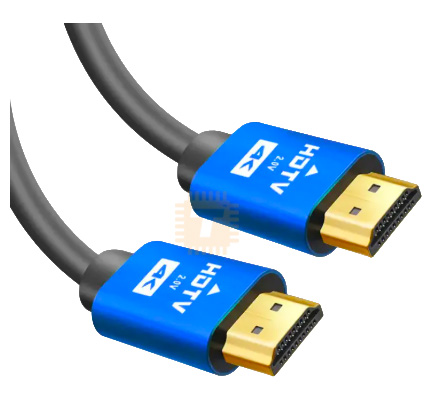

The HDMI Cable 20m 4K UHD (High Quality) is an active, ultra-long digital audio-video interconnect engineered for long-run commercial AV installations, home theaters, high-definition security control centers, and digital signage. Engineered to bypass the high-frequency signal attenuation common to passive copper over long distances, it features heavy-gauge 24/26 AWG oxygen-free copper (OFC) twisted pairs, an integrated inline signal equalizer chip, and multi-layer aluminum-foil/braided-mesh shielding. Delivering up to 18 Gbps total bandwidth, it supports 4K UHD resolution at 60Hz (4:4:4 chroma subsampling), High Dynamic Range (HDR10/Dolby Vision), 32-channel immersive audio, and HDCP 2.2 content encryption without signal latency, pixel jitter, or frame drops.

Specifications

• Cable Type: Active / Equalized High-Speed HDMI Cable with Ethernet (HDMI Type-A Male to Male)
• Total Cable Length: 20.0 Meters (Approx. 65.6 Feet)
• HDMI Specification Compliance: HDMI 2.0b / HDMI 2.0 (Backward compatible with HDMI 1.4, 1.3, 1.2, and 1.1)
• Total Signal Bandwidth: Up to 18.0 Gbps (600 MHz TMDS Single-Link Clock Rate)
• Maximum Video Resolution Support:
  • 4K UHD (3840 × 2160) at 60 Hz / 50 Hz (4:4:4, 4:2:2, 4:2:0 Chroma Subsampling)
  • Cinema 4K (4096 × 2160) at 60 Hz / 24 Hz
  • Full HD 1080p (1920 × 1080) at 120 Hz / 144 Hz / 240 Hz
  • 720p / 1080i / 576p / 480p / 3D Full HD Video Formats
• High Dynamic Range (HDR) Support: HDR10, Dolby Vision, HLG (Hybrid Log-Gamma), Wide Color Gamut (BT.2020)
• Color Depth: 24-bit, 30-bit, 36-bit, 48-bit Deep Color (8-bit, 10-bit, 12-bit, 16-bit per channel)
• HDCP Compliance: HDCP 2.2 and HDCP 1.4 (High-bandwidth Digital Content Protection)
• Audio Capability:
  • Audio Return Channel (ARC) Support
  • Up to 32 Discrete Uncompressed Audio Channels (1536 kHz Sample Rate)
  • Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio, LPCM 7.1 / 5.1
• Conductor Material: 100% High-Purity Solid Oxygen-Free Copper (OFC) Conductor Wire
• Wire Gauge: Heavy-Duty 24 AWG / 26 AWG Signal Pairs (Minimized DC Resistance)
• Signal Amplification: Built-in Active TMDS Equalization / Booster IC in Output (Sink) Connector Hood
• Shielding Construction: Triple-Layer EMI/RFI Shielding (Individual Mylar Aluminum Foil per Pair + 100% Coverage Overall Foil + Tinned Copper Braided Mesh)
• Connector Plating: 24K Gold-Plated Precision Connectors (Corrosion-resistant, low contact resistance)
• Connector Housing: High-Strength Zinc Alloy / Reinforced Heavy-Duty Molded PVC Shell
• Outer Jacket Material: Heavy-Duty Flexible PVC Jacket (Optional High-Density Nylon Braided Mesh Outer Layer)
• Outer Diameter (OD): Approx. 8.5 mm to 9.5 mm
• Bend Radius: Minimum 60 mm (Dynamic) / 45 mm (Static installation)
• Operating Temperature Range: -20°C to +75°C (-4°F to 167°F)
• Net Weight: Approx. 1.35 kg to 1.65 kg

Features

• Integrated Active Signal Redriver / Booster: Compensates for high-frequency signal loss over 20 meters, regenerating digital TMDS clock and data streams to ensure a clear 4K@60Hz image without digital sparkle artifacts.
• True 18 Gbps 4K60 Capability: Supports full 60 frames per second 4K playback with HDR10 dynamic color grading, fluid motion rendering, and no 30Hz stuttering.
• Triple EMI/RFI Shielding: Multi-layer foil and braided shielding block external interference from nearby AC high-voltage lines, fluorescent ballasts, Wi-Fi antennas, and motor drives in conduit runs.
• 24K Gold-Plated Terminations: Thick gold-plated contacts provide oxidation resistance, clean electrical contact, and stable EDID/CEC handshakes over thousands of mating cycles.
• Rugged Flexible Construction: High-tensile strain relief boots and a robust outer jacket protect the internal copper pairs against twisting, stretching, and conduit abrasion during pull-through routing.

Common Applications

• Home Cinema & Auditorium Projectors: Running long-distance ceiling projector video lines back to an AV receiver, media server, or Blu-ray source at the equipment rack.
• Conference Rooms & Boardrooms: In-wall or under-floor routing connecting boardroom presentation tables to wall-mounted interactive 4K displays.
• Digital Signage & Retail Showrooms: Connecting central media players, digital signage boxes, or industrial PCs to remote storefront video walls.
• Security Surveillance Centers: Long-distance HDMI link from multi-channel NVR/DVR security consoles to remote security monitoring command stations.
• Live Church & Event Production: Connecting stage switcher consoles or live PTZ camera HDMI outputs to front-of-house confidence monitors and LED screens.

Usage Tips

• Directional Installation (CRITICAL):
  • Because this long-run cable features an integrated inline active chipset, it is strictly directional and cannot be connected in reverse.
  • "Input" / "Source" End: Must connect to the transmitting source (PC, Gaming Console, Blu-ray, NVR, Matrix Switcher).
  • "Output" / "Display" / "TV" End: Must connect to the receiving sink (TV, Projector, Monitor).
  • Always check the connector labels before pulling the cable through conduits, wall cavities, or suspended ceilings. Reversing the cable will produce no video output.
• Pre-Installation Bench Testing: Always uncoil and bench-test the cable with your specific source and display before pulling it through walls, conduits, or tight raceways.
• Conduit Pulling Best Practices:
  • Use at least a 25 mm (1 Inch) to 32 mm (1.25 Inch) smooth conduit to allow the bulky HDMI connector head to pass freely.
  • Attach the pulling cord to the outer cable jacket and strain relief boot using pulling lube. Never apply pulling tension directly to the delicate metal connector shell.
  • Protect the connector heads using a protective sleeve or painter's tape to prevent drywall dust, plaster, or pulling grease from entering the pin cavities.
• Bend Radius Caution: Maintain a gentle bend radius (≥ 50 mm to 60 mm). Avoid sharp 90° kinks around stud corners, which can permanently deform the internal twisted pair geometry and cause signal impedance mismatch.
• Source Power Integrity: The active booster chip inside draws a tiny amount of parasitic current (approx. 50 mA) from pin 18 (+5V power rail) of the HDMI port. Ensure the source device provides standard HDMI-compliant power. If connecting through passive unpowered wall couplers, check that the signal handshake remains stable.
