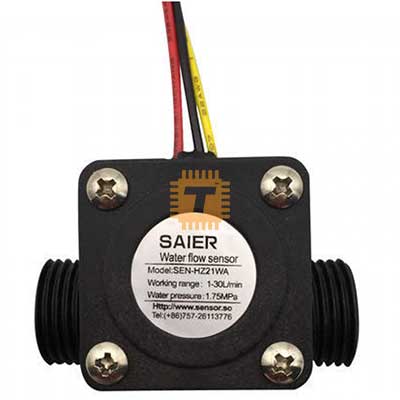

HZ21WA Water Flow Sensor 1-30L/min 1.75MPa 0.5inch (MD0214) Products
| Name | HZ21WA Water Flow Sensor 1-30L/min 1.75MPa 0.5inch |
| Code | MD0214 |
| Price | Rs.1,200.00 |
| In Stock | Yes |
| Package | MODULE |
Product Details
Specifications:
- Test range:1~30L/min(m³/h)
- Connect way:57.8*37*37mm, G1/2 outside diameter
- instantaneous flow pulse characteristics: F=[10Q]±10%, F means instantaneous pulse value(Hz),Q means instant flow
- Max. Working current:15mA
- Insulation: insulation resistance≥100MΩ
- Use voltage: 5VDC
- Fit media: water
- Working pressure:1.75MPa
- Protection grade: high
- linearity:0.01(%F.S.)
- Output signal: Pulse
- Hysteresis:0.01(%F.S.)
