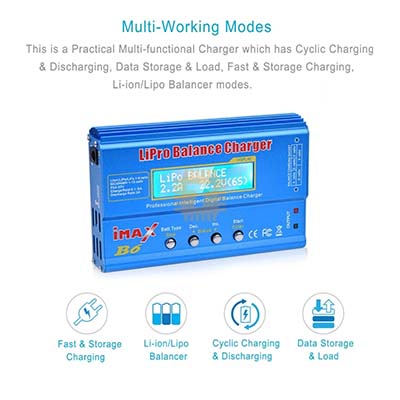

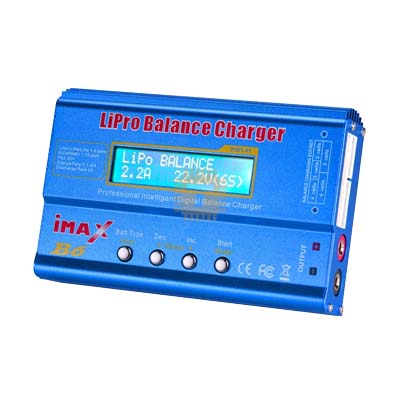

The iMAX B6 80W 6A Charger/Discharger 1-6 Cells is a very advanced charger, able to charge, balance, and discharge Li-Ion, LiPoly, LiFe (A123), NiCd, and NiMH batteries. It is microprocessor controlled, just like all the best chargers, and will balance the individual cells in your Li-XX batteries. It will charge from 0.1 to 6.0 A and is capable of charging packs up to 6S. It has input voltage protection so as not to flatten your car battery in the field and will also storage charge your batteries when you are not using them. You can power it with any power supply delivering from 11 to 18 volts, so it is very flexible. This charger has a JST-XH charge plug, which makes it compatible with Zippy, HXT, Loong Max, and any pack with a JST adapter.

Features:

• Microprocessor controlled
• Delta-peak sensitivity
• Individual cell balancing
• Li-Ion, LiPoly, and LiFe capable
• NiCd and NiMH capable
• Large range of charge currents
• Storage charge function
• Time limit function
• Input voltage monitoring (Protects car batteries in the field)
• Data storage (Store up to 5 packs in its memory)
• Battery break in and cycling

Specification:

• Color: Blue
• Output: 15V 6A
• Operating voltage range: 10 - 20VDC / AC to DC adaptor (10 - 20VDC / 6A)
• Max. charge power: 80W
• Max. discharge power: 10W
• Charge current range: 0.1 - 6.0A
• Discharge current range: 0.1 - 2.0A
• Current drain for balancing Li-po: 300mAh/cell
• NiCd / NiMH battery cell count : 1 - 15cell
• Li-Ion / LiPo cell count: 1 - 6 series
• Pb battery voltage: 2 - 20v

NOTE: The iMax B6 charger is designed to charge small batteries used in RC cars, planes, quadcopters, and toys. It is also known to charge 12V lead-acid batteries in vehicles. However, we do not recommend using this charger for hybrid car batteries or for any other purposes that require specially designed battery chargers.
