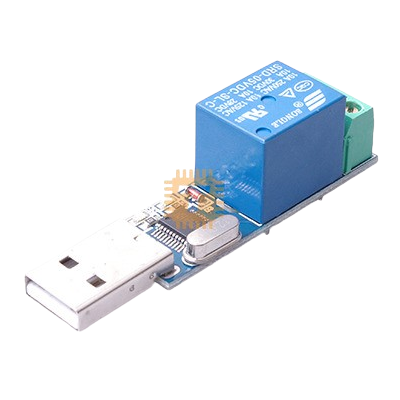

The LCUS-1 USB Relay Control Module is equipped with stable performance USB to serial chip and microcontrollers and a serial port debugging software is used to send serial port commands to control the relay.

Features:

• Controller chip: Onboard high-performance microcontroller chip
• Control chip: Onboard CH340 USB control chip
• LED indicator: Onboard power LED and relay status LED
• Relays: Onboard 5V, 10A / 250VAC, 10A / 30VDC relays, long relay life, can be continuous pull 10 million
• Protection function: with overcurrent protection and relay diode freewheeling protection.

LC USB switch protocol:

• Data (1) --- starting identity (the default is 0xA0)
• Data (2) --- switch address code (default is 0x01, identifying the first channel switch)
• Data (3) --- Operating Data (0x00 to "Off", 0x01 "On")
• Data (4) --- checksum

Example:

• Open USB switch: A0 01 01 A2
• Close USB switch: A0 01 00 A1

Operation:

• Step1: the USB relay module into the computer, install CH340 USB to serial chip driver
• Step 2: Open the STC-ISP, SSCOM32 serial debugging software, select the baud rate of 9600, in hexadecimal (hex) form to send A0 01 01 A2 to turn on the relay in (hex) form, Send A0 01 00 A1 to turn off the relay, you can choose to send manually or automatically.
• Use SSCOM332 serial debugging software for example

Send manually

• Select the baud rate 9600, check the "HEX send", enter the command A0 01 01 A2 or A0 01 00 A1, point "send", you can turn on or off the relay
• Select the baud rate 9600, click on the SSCOM32 interface in the "expansion", enter the command a0 01 01 A2 and A0 01 00 A1, check the "HEX send", enter the automatic cycle to send the interval, check the "automatic loop" The relay can be automatically turned on and off
