Specifications:

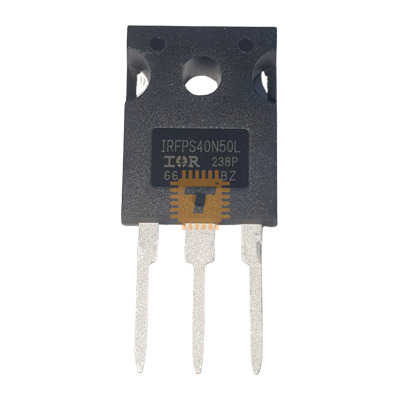

• Type Designator: IRFPS40N50L
• Type of Transistor: MOSFET
• Type of Control Channel: N -Channel
• Maximum Power Dissipation (Pd): 540 W
• Maximum Drain-Source Voltage |Vds|: 500 V
• Maximum Gate-Source Voltage |Vgs|: 30 V
• Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
• Maximum Drain Current |Id|: 46 A
• Maximum Junction Temperature (Tj): 150 °C
• Total Gate Charge (Qg): 380 nC
• Rise Time (tr): 170 nS
• Drain-Source Capacitance (Cd): 960 pF
• Maximum Drain-Source On-State Resistance (Rds): 0.1 Ohm

Applications:

• Hard Switching Primary or PFC Switch
• Switch Mode Power Supply (SMPS)
• Uninterruptible Power Supply
• High Speed Power Switching
• Motor Drive

Documentation:

• Datasheet
