• Mode: lHRF-MD212
• Manufacturer: Korea Auto Controls Co., Ltd.
• Material:Aluminum alloy
• Insulation resistance: 100mΩ
• Dielectric withstand voltage: 2000VAC
• Standard certification: CE, CCC
• Ambient temperature: -25°C~70°C
• Environment humidity: 45%~85% RH
• Protection level: IP54

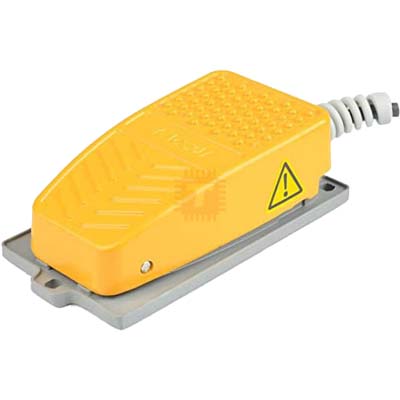

The Kacon HRF-MD2 light duty foot switch has an SPDT contact arrangement with momentary operation and a die cast aluminum housing with mounting plate. Features an integrated V type micro switch and 24K gold plated contacts. Rated IP 54.

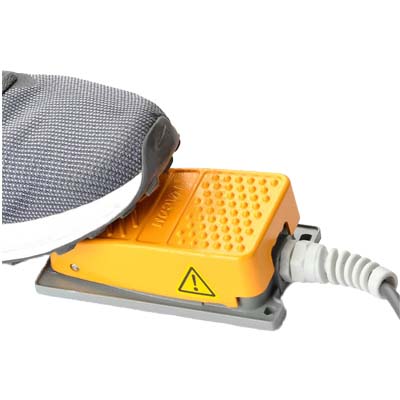

• Operation: The switch is on while the pedal is held down, and off once the pedal is released.

Specifications

• Switch Dimensions- 71mm W x 135mm L x 42mm H
• Foot Switch Operation- Momentary
• Contact Arrangement- SPDT (1 NO + 1 NC)
• Rated Current- 10A, 250V AC
• Integrated Switch- V Type Micro Switch (UL, CUL, VDE, CE Certified)
• Housing Material- Die Cast Aluminum
• Contact Material- 24K Gold Plated

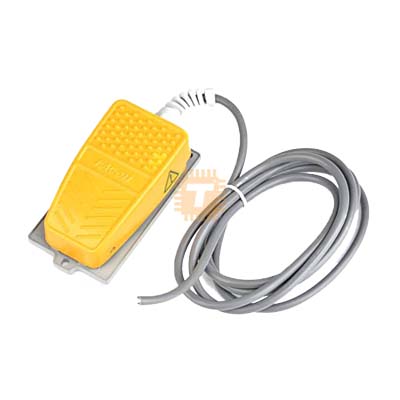

• Cable- 0.75mm2 x 3 line cables x 2m
• Ingress Protection- IP 54
• Approvals- CE

Contact Rating

• 3A AC380V
• 8A AC220V
• 0.5A DC125V
