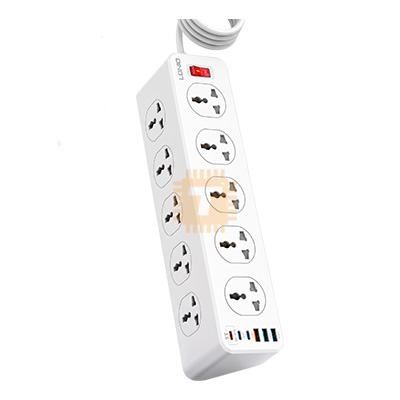

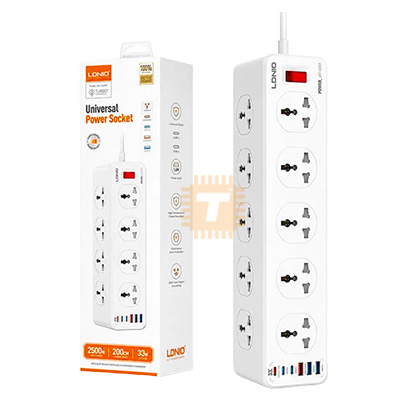

The Original LDNIO SC10610C 10-Outlet Universal Power Socket Extension Hub (2500W / 10A / 30W USB-C PD & QC3.0 Fast Charging) is an all-in-one desktop power distribution strip engineered for high-density workstation powering, lab test benches, and multi-device fast charging. Equipped with 10 universal AC power outlets featuring individual child-safety shutter doors and wide plug spacing, it accommodates UK, EU, US, and AU mains plugs without blocking adjacent ports. In addition to AC power distribution, it features an integrated 6-port high-speed USB charging module—including a dedicated USB Type-C Power Delivery (PD) port, a Qualcomm Quick Charge 3.0 (QC3.0) port, and Auto-ID smart-matching USB-A ports. Constructed from 850°C flame-retardant polycarbonate housing with heavy-duty internal copper busbars and a 2-meter heavy-gauge power cable, it provides multi-layer surge, overcurrent, and short-circuit protection for sensitive electronics.

Specifications

• Brand / Series: LDNIO (Smart Fast Charging Power Socket Series)
• Model / Part Number: SC10610C
• Total AC Outlets: 10 Universal AC Sockets (Accepts UK, US, EU, AU, CN standard plugs)
• Total USB Ports: 6 USB Charging Ports (1x USB-C PD + 1x USB-A QC3.0 + 4x USB-A Auto-ID)
• Rated Input / Operational Voltage: 100V – 250V AC (50/60 Hz)
• Rated AC Power: 2500W Max.
• Rated AC Current: 10A Max.
• DC USB Output Ratings:
  • USB-C (PD 3.0): 5V⎓3A, 9V⎓2A, 12V⎓1.5A / Up to 30W–33W Max.
  • USB-A (QC 3.0): 3.6V–6V⎓3A, 6.2V–9V⎓2A, 9.2V–12V⎓1.5A (18W Max.)
  • USB-A (Auto-ID Ports × 4): 5V⎓2.4A (12W Max. per port, intelligent load sharing)
  • Total Combined USB Output Power: 30W / 33W Max.
• Supported Fast Charging Protocols: USB Power Delivery (PD 3.0 / PPS), Qualcomm Quick Charge 3.0 (QC3.0), Apple 2.4A, Samsung AFC, Huawei FCP, and BC1.2
• Power Cord Length & Type: 2.0 Meters (200 cm) Heavy-Duty Pure Copper 3-Core Cable
• Mains Plug Standard: UK 3-Pin Grounded Plug (Fused 13A) / EU 2-Pin / US 3-Pin
• Master Switch: Integrated heavy-duty push button rocker switch with LED power indicator
• Housing Material: 850°C Flame-Retardant High-Impact PC (Polycarbonate)
• Safety Shutters: Integrated child safety barrier doors across all AC outlets (resists > 75N insertion force)
• Internal Conductor: Integrated high-conductivity phosphor bronze / brass stamped busbars (solderless stamping structure)
• Built-in Protections: Overload protection, surge suppression, over-voltage, over-current, short-circuit, anti-static, and thermal shut-off
• Dimensions: Approx. 340 mm × 82 mm × 40 mm (L × W × H)
• Net Weight: Approx. 580 g to 650 g

Features

• High-Density 16-in-1 Hub: Consolidates 10 AC mains devices and 6 USB devices onto a single power strip, eliminating cable clutter in workstations and workbench setups.
• Direct USB-C PD & QC3.0 Fast Charging: Eliminates bulky external USB wall chargers by supplying direct high-speed charging for iPhones, Samsung Galaxy, iPad, power banks, and tablets.
• Universal Socket Interface: Patented socket geometry securely holds European Schuko, US 2/3-pin, UK 3-pin, Australian, and Chinese plugs without loose pins or arcing.
• Integrated Stamped Copper Busbar: Monolithic internal brass strip architecture eliminates spot-soldered junction wires, drastically lowering internal resistance and preventing localized overheating under full 10A loads.
• Child Safety Shutter Doors: Each AC receptacle is protected by an internal mechanical interlock door that opens only when dual/triple plug pins are inserted simultaneously, preventing accidental shocks.
• 850°C Fire-Resistant Casing: High-grade flame-retardant polymer meets UL 94V-0 flammability standards, self-extinguishing in the event of an abnormal electrical surge.

Common Applications

• Electronics Laboratories & DIY Workbenches: Powering oscilloscopes, DC power supplies, soldering stations, hot air guns, and testing instruments simultaneously.
• Office & Desktop Workstations: Supplying power to dual monitors, desktop PCs, laptops, printers, desk lamps, and mobile devices from a single mains outlet.
• 3D Printer & CNC Enclosures: Clean power breakout for multiple 3D printers, filament dry boxes, LED illumination bars, and Raspberry Pi octoprint servers.
• Home Entertainment Centers: Consolidating Smart TVs, soundbars, audio amplifiers, gaming consoles (PS5 / Xbox), and streaming boxes.
• Device Charging Hubs: Commercial and classroom charging docks for simultaneous charging of multiple tablets, phones, and wireless equipment.

Usage Tips

• Maximum Power Limit (2500W): Ensure the cumulative power draw of all connected appliances does not exceed 2500W / 10A. Avoid running multiple high-draw thermal appliances (such as heavy space heaters, electric kettles, and heat guns) simultaneously on the same extension strip.
• USB-C PD Protocol Optimization: For maximum USB-C charging speed (up to 30W/33W), use a high-quality E-Marked USB-C to USB-C or MFi-certified USB-C to Lightning cable.
• Smart Auto-ID Load Balancing: The 4 standard USB-A ports feature dynamic load detection. When multiple USB devices are connected, the internal regulator balances current output to ensure stable voltage regulation across all channels.
• Cable Uncoiling: Always fully uncoil the 2-meter heavy-duty cable when running loads approaching 10A continuous current to prevent inductive heat accumulation inside coiled cord loops.
• Indoor Environmental Placement: Designed for indoor dry environments; keep the extension strip clear of moisture, liquids, and direct high-temperature heat sources.
