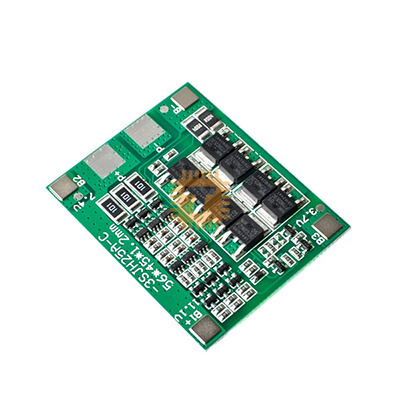

High-accuracy voltage detection circuit;

Terminal of the charger using high voltage device;

Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);

MOS transistor can control the battery charge and discharge;

Low standby current consumption.

Specifications:

• Over Charge voltage: 4.25-4.35v±0.05v
• Over Discharge voltage: 2.3-3.0v±0.05v
• Max Working current: 25A
• Max peak current: 35-40A
• Working temperature: -40---+50
• Storage Temperature: -40-- +80
• Small current: 50uA
• Life cycle: more then 30000 hours
• Resistance: Less than 100mΩ
• ShortCut: Protectable,Charge can repair
• Size: 56*45*4.0mm
