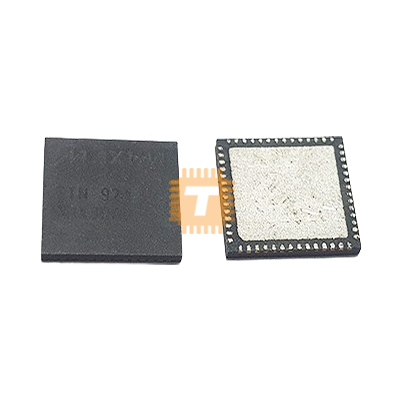

The MAX9708 mono/stereo, Class D audio power amplifier delivers up to 2 x 21W into an 8Ω stereo mode and 1 x 42W into a 4Ω load in mono mode while offering up to 87?ficiency. The MAX9708 provides Class AB amplifier performance with the benefits of Class D efficiency, eliminating the need for a bulky heatsink and conserving power. The MAX9708 operates from a single +10V to +18V supply, driving the load in a BTL configuration.

The MAX9708 offers two modulation schemes: a fixedfrequency modulation (FFM) mode, and a spread-spectrum modulation (SSM) mode that reduces EMI-radiated emissions. The MAX9708 can be synchronized to an external clock from 600kHz to 1.2MHz. A synchronized output allows multiple units to be cascaded in the system.

Features:

• 2 x 21W Output Power in Stereo Mode (8Ω, THD = 10%)
• 1 x 42W Output Power in Mono Mode (4Ω, THD = 10%)
• High Efficiency: Up to 87%
• Filterless Class D Amplifier
• Unique Spread-Spectrum Mode
• Programmable Gain (+22dB, +25dB, +29.5dB, +36dB)
• High PSRR (90dB at 1kHz)
• Differential Inputs Suppress Common-Mode Noise
• Shutdown and Mute Control
• Integrated Click-and-Pop Suppression
• Low 0.1% THD+N
• Current Limit and Thermal Protection
• Programmable Thermal Flag
• SYNC Input/Output
• Available in Thermally Efficient, Space-Saving 56-Pin TQFN Package

Package: TQFN

Link to datasheet:: https://www.mouser.com/datasheet/2/256/MAX9708-1292336.pdf
