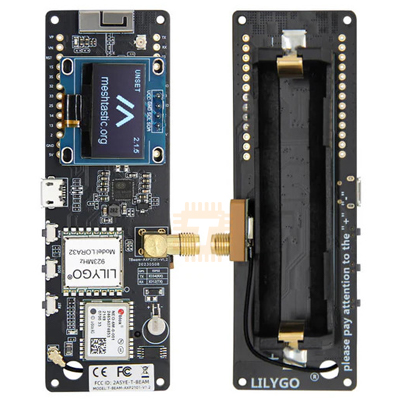

The Meshtastic T-Beam LoRa ESP32 Development Board is a versatile IoT device designed for creating decentralized, off-grid communication networks. It's particularly well-suited for applications requiring long-range, low-power wireless communication without relying on traditional infrastructure.

The T-Beam board is primarily used with the Meshtastic firmware, an open-source project that enables secure, off-grid messaging over LoRa networks. Meshtastic supports mesh networking, allowing devices to relay messages over long distances by hopping between nodes. Each device can connect to a smartphone via Bluetooth for configuration and messaging. The firmware is actively maintained and supports various hardware versions, including the T-Beam V1.1.

Features :

• Onboard RTC crystal for timekeeping and wakeup functionality
• Three buttons: Power, IO38, and Reset
• CH9102 serial chip for programming
• 3D Wi-Fi antenna with IPEX connector for optional external antenna

Specifications :

• Microcontroller (MCU): ESP32 with 4MB Flash and 8MB PSRAM
• Wireless Connectivity:
  • Wi-Fi: 2.4GHz b/g/n
  • Bluetooth: 4.2
• LoRa Transceiver:
  • Chip: SX1276
  • Frequency Bands: 915MHz (default), with options for 433MHz, 868MHz, and 923MHz
  • Sensitivity: Up to -148dBm
  • Data Rate: Up to 300kbps
• GPS Module: NEO-6M with ceramic antenna
• Display: 0.96-inch OLED (SSD1306)
• Power Supply:
  • Primary: USB Micro-B

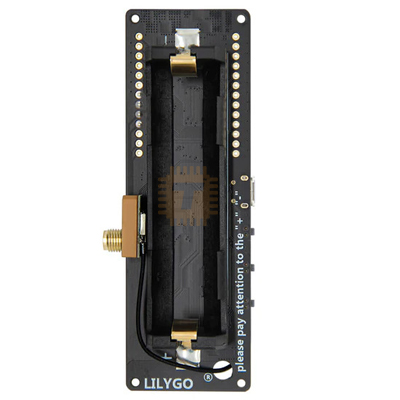

  • Secondary: 18650 Li-ion battery holder (battery not included)
